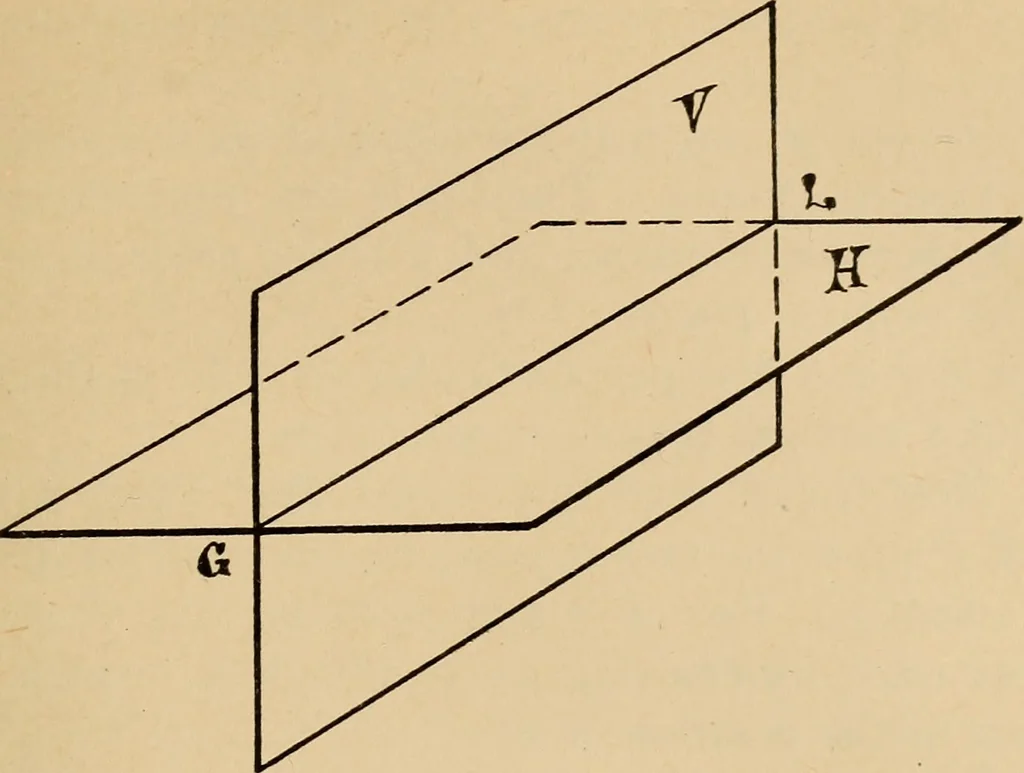

any line, or surface, or solid, may befound by finding- the projections of all of its points.For lines and surfaces are but successions of points,and solids are bounded by surfaces. APPLICATION OF PROj:eCTION TO DRAWING. 14. Now consider two mathematical planes of in-definite extent, intersecting-… … f to ur-e §. Let the vertical plane be denoted by Fand the hori-zontal plane by //, and their line of intersection by GL. 15. Now imagine a point to be situated in space inone of the ang-les of these two planes, as shown in Fig-. 4 :
