Mechanical drawing. Elementary and advanced (1910)
Reid, John S. (John Simpson), 1856- · New York, J. Wiley & sons; [etc, etc.] · leaf 187

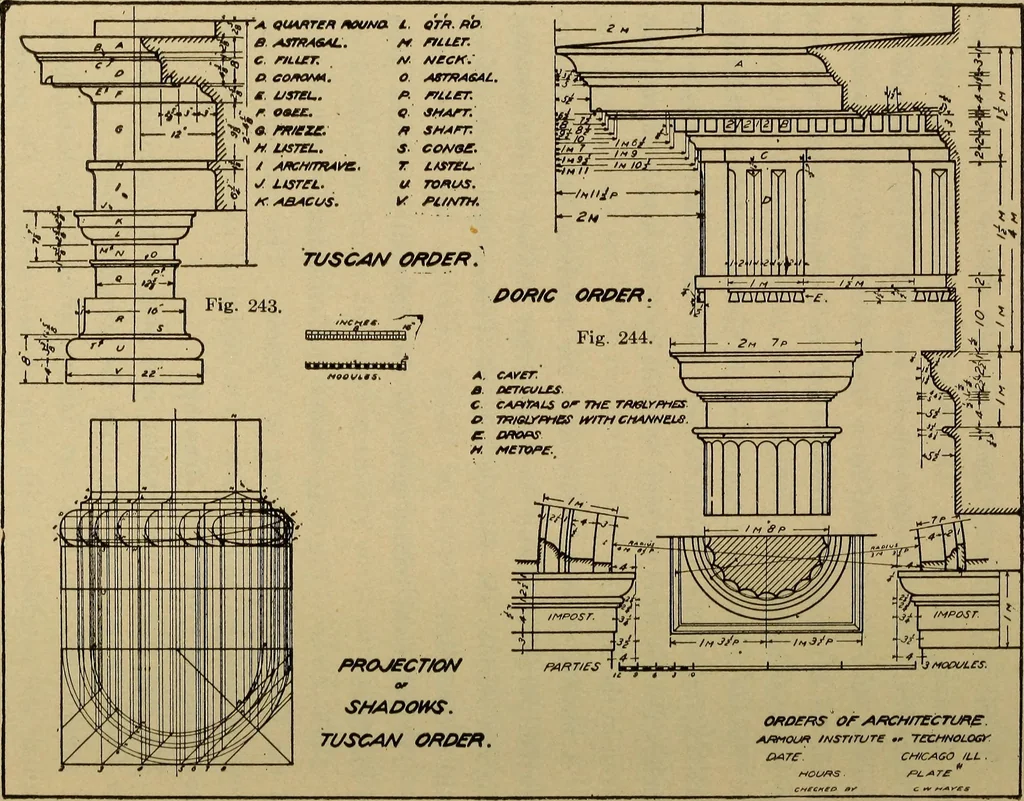

order according to Vignola, The proportions aregiven in modules and parties. The technical names of some ofthe details are given in the drawing. Fig. 245 shows the elevation and plan of the entablature ofthe Doric Order. Fig. 246 gives the complete Order. Ionic Order.—In Figs. 247-248 are given the… … ARCHITECTURAL DRAWING.PLATE 27. 173
