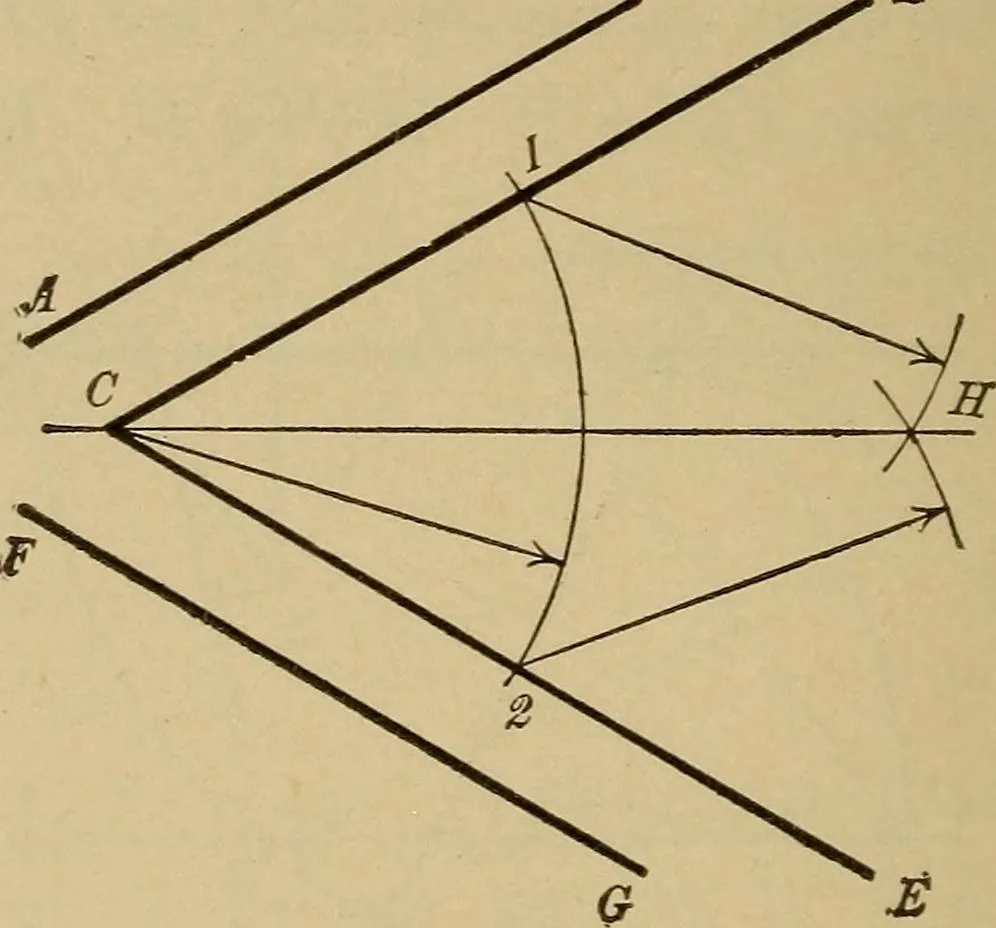

Fig. 24. FiS.b25. • To Divide an Angle into two equalParts, when the Lines do not Extend to a MeetingPoint.—Draw the line CD and CE parallel and at equal dis- … Fig. 25. tances from the lines AB and FG. With C as center and anyradius draw arcs 1,2. With 1 and 2 as centers and any con- GEOMETRICAL DRAWIXG. 21 venient radius describe arcs intersecting at//. A line throughC and H divides the angle into two equal parts. Fi2b2(3*. To Construct a Rhomboid having…
