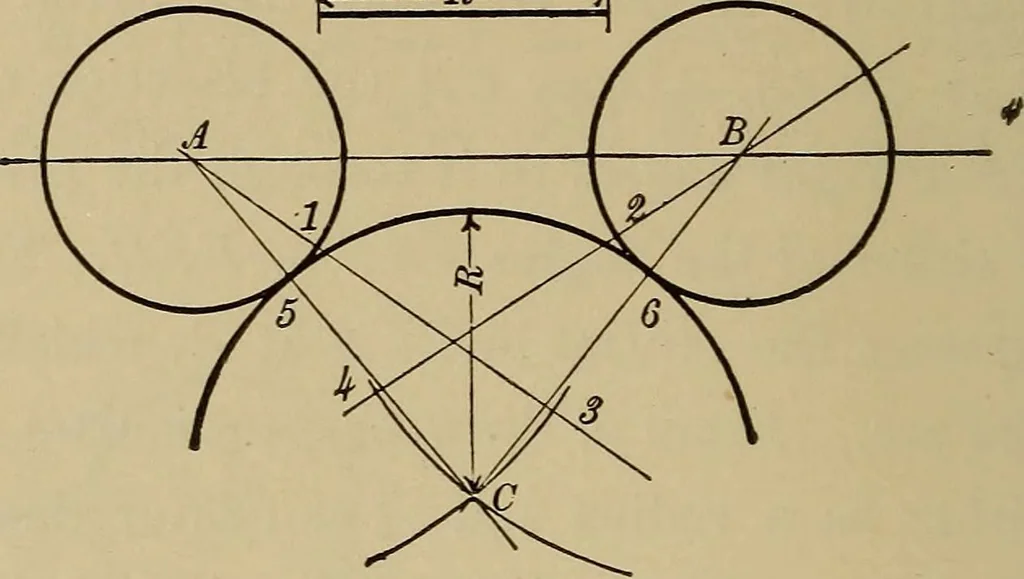

points I, 2, 3. Ffgb* to. To Draw an Arc of a Circle of GivenRadius R tangent to two Given Circles A and B.—From A and B draw any radial lines as A$, B\. Outsidethe circumference of each circle cut off distances 1-3 and 2-4 36 MECHANICAL DRAWING. each =z the given radius R. Then with center A and… … Prob. 43.Fig. 61. Fig. 60. To Draw an Arc of a Circle of Given Radius R tangent to two Given Circles A and B
