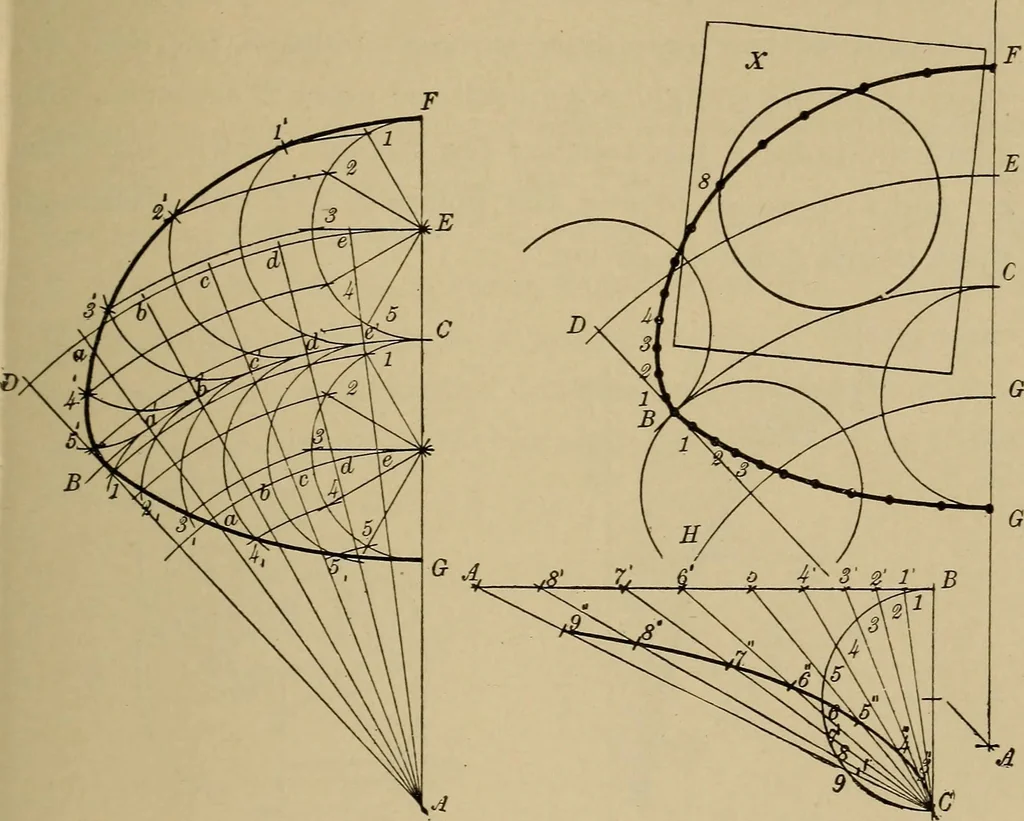

ugh the points of division onthe generating circle, cutting the arcs of the generating circlesin their several positions at the points i, 2, 3, etc. Thesewill be points in the curve. &?*• ||; Another Method.—Draw the generatingcircle on the celluloid and roll it on the outside of the… … Fig. 81. Fig. 83. F$.b!!; To Draw THE ClSSOlD.—Draw any line ABand BC perpendicular to it. On BC describe a circle. Fromthe extremity C of the diameter draw any number of lines,at any distance apart, passing through the circle and meetingthe line AB in 1, 2, 3, etc. Take the length from A to 9and…
