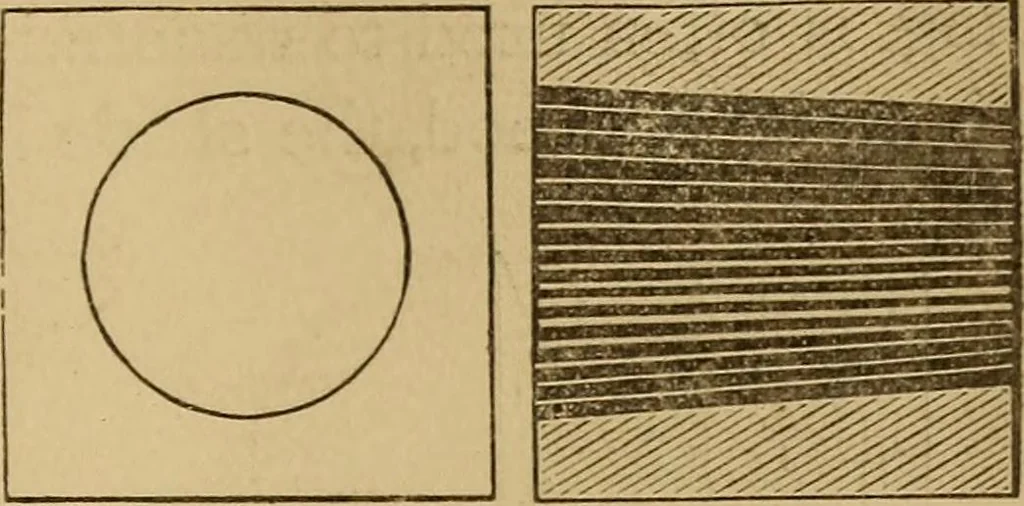

SHADOW LINES AND LINE SHADING. 89 … Fij III. matter if the piece is to look natural; and all that be done is to shade the top darkly and let the light fall mostly at and near the bottom. An example of line shading to denote the relative distances from the eye of various surfaces is given in Figure 113, where the surfaces most distant…
