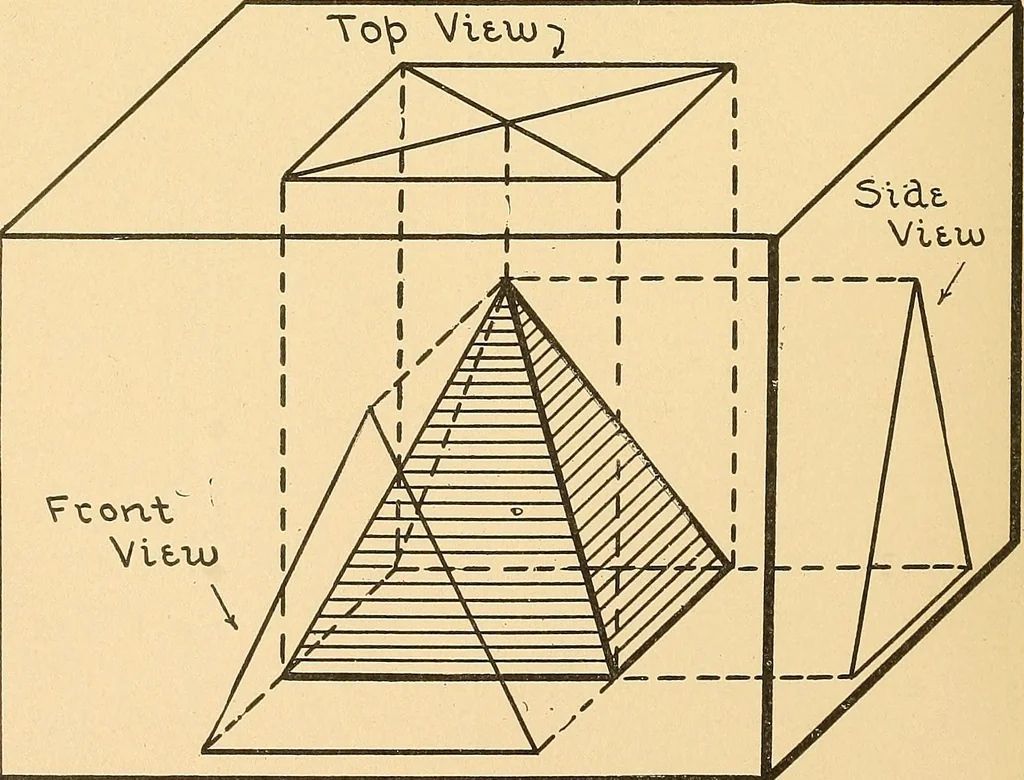

Fig. 6 spective view, and gives us the appear-ance of the object that we would ordi-narily get by glancing at it. Now if the … Fig. 5 MECHANICAL DRAWING FOR PLUMBERS 11 three views of this object are to be ob-tained, that is, the top, front and side 1 4 Top | Vituj Jon-i ii i A} Fxorvt i ii *—iiT—i—* ii Mitu) Fig. 7 views, after the manner in previous fig-ures, they will be such as Fig. 7 shows. It will be readily seen…
