Shop sketching, a course of problems for mechanical drawing students (1919)
Windoes, Ralph Flagg, 1890- · Milwaukee, Wis., The Bruce publishing company · leaf 22

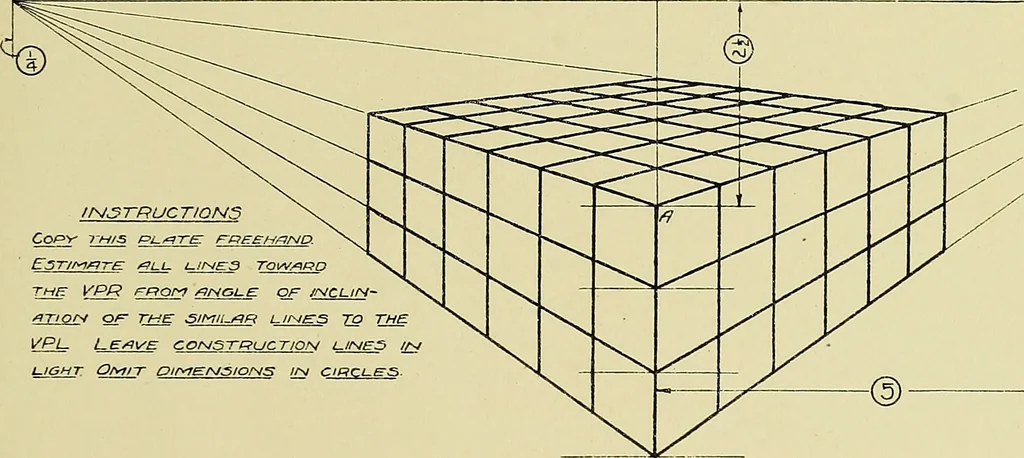

s are the same. 4. Connect the edges with VPL. 5. Between the upper converging lines, estimatethe faces of six cubes. These will get smaller as tlieyapproach the vanishing point. 6. If they appear as cubes, drop vertical linesthrough the other converging lines. 7. Estimate the angles of inclination… … THIT VPR rPIOM /?/VC^£: of jr\ICLlN~flTlQM OP- TME SIMIUSS LJNES XQ THE.VPl- L^e^YS CONSTPfUCT/ON L.«SieS IJ^J L-iGHT Omit oir^ENSioNs us; ciRcues. eUj£TE fs/O. Plate 2 20 SHOP SKETCHING 9. Go over the outlines of the cubes with the2 H pencil. Omit the instructions and the dimen-sions in the…
Mechanical drawing
