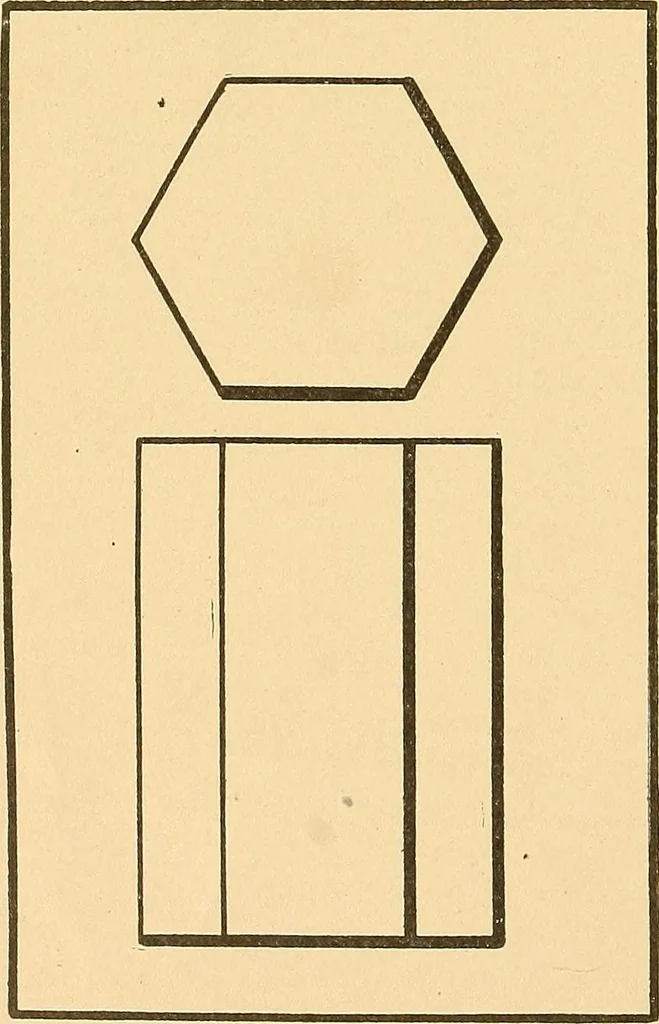

ry that theobject be placed in any particular posi-tion when the views are taken. Inninety-nine cases out of a hundred, how-ever, the object is supposed to be placedin the position from which the views canbe most easily obtained, that is, directlyfacing the observer. Suppose we consider, for… … Fig. 8 shows, but if placed in some oddposition, such views as Fig. 9 shows willhave to be made. Either set of views shows the dimen-sions of the object equally well, but Fig.8 is preferable, because simpler. It willbe noticed that in which ever position theobject is placed, the two views or…
