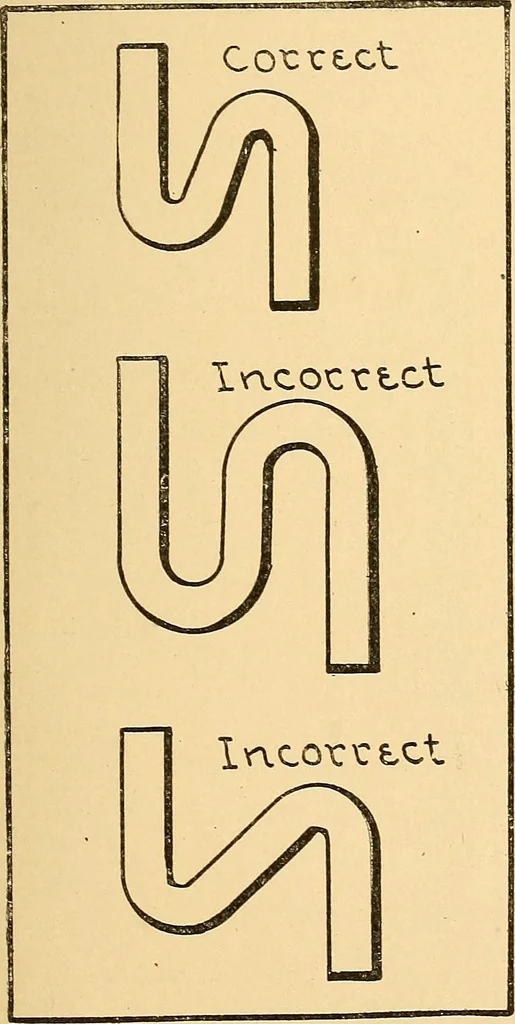

on and to set it out, andthe method of doing it will be taken upunder the subject of inking. In layingout the tee in Fig. 13, he careful to pro-portion the branch properly. Do not get itinto the center of the fitting as the incor-rect sketch shows, and do not have thebranch too long, as is also… … Fig. 15 -Another Example of Correct and IncorrectWork intersection of the branch with the mainpart of the fitting. Do not make it in theform of a curve as the incorrect sketchshows, but with two 45 degree lines.
