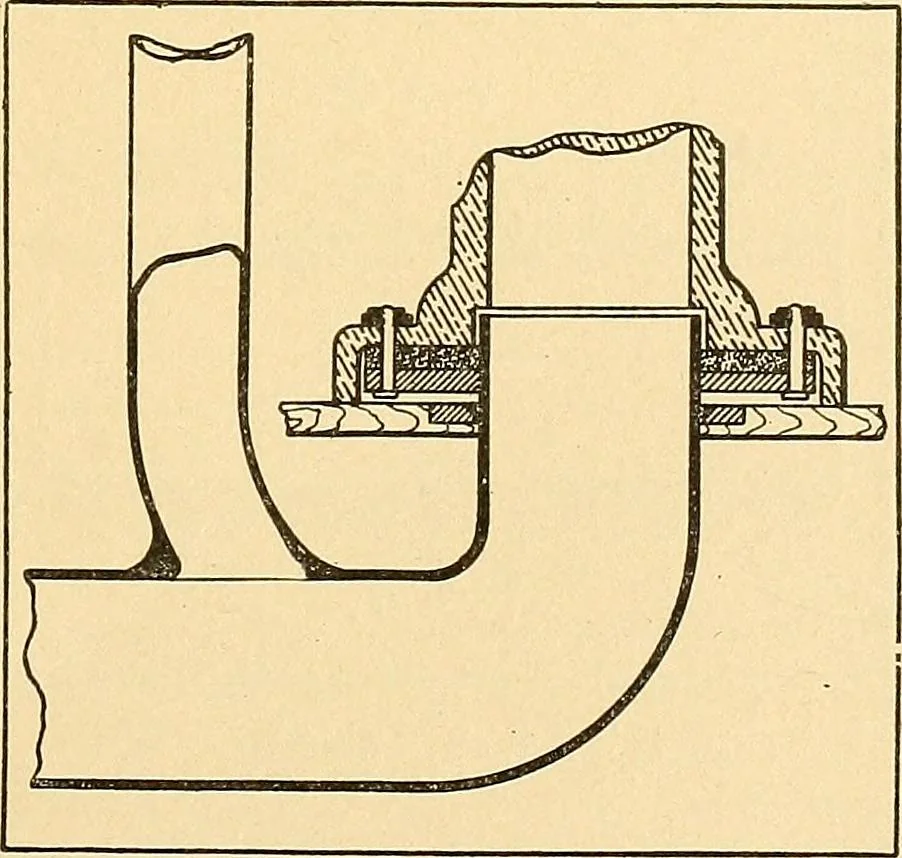

s of sectioningas will clearly distinguish the differentparts of the same drawing, one from theother. Thus in Fig. 68 the crockery isshown in section by dot and dash lines,the rubber gaskit by a fine dotted sur-face, the brass flange by 45 deg. sectionlines, the solder sections by 45 deg.… … Tra-feS. 62 MECHANICAL DRAWING FOR PLUMBERS
