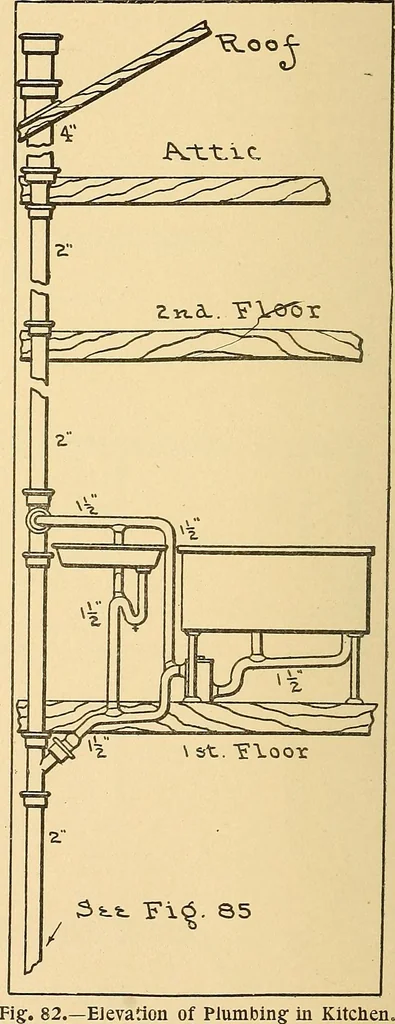

etc., be obtained. Fromthe two floor plans, it will be noticed that the plumbing is so arranged that thereare four groups of fixtures. Each set ofkitchen fixtures is separate from the oth-er, with its own stack, while the two lav-atories in the toilet rooms enter onestack, and the two bath rooms… … Elevation of Plumbing: in Kitchen. MECHANICAL DRAWING FOR PLUMBERS 73
