Mechanical drawing for plumbers; a concise, comprehensive and practical treatise on the subject of mechanical drawing (1910)
Starbuck, R. M. (Robert Macy), 1844-1927 · New York, The Norman W. Henley publishing co. · leaf 80

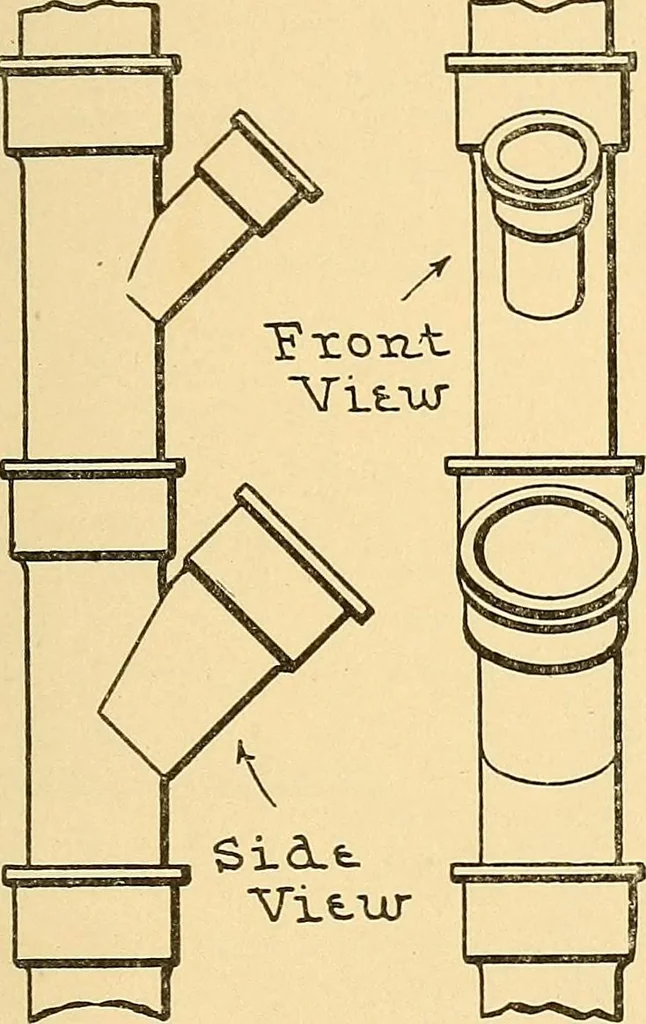

own on a cellar plan with any de-gree of clearness, and it is necessaryeither to give a detail or to show the con-nection on the respective elevations. Regarding Fig. 87, it will be seen onreferring to the cellar plan, Fig. 78 of thepreceding article, that on this plan thefresh air inlet would show… … Fig. 84 can be shown twice as large asgiven, but the remaining sketches can bedrawn up in the same size as we presentthem. We might add here, that in working uphis drawings, the student would do wellto practice lettering, following the styleof lettering used on our illustrations, forit is a fact…
Plumbing · Mechanical drawing
