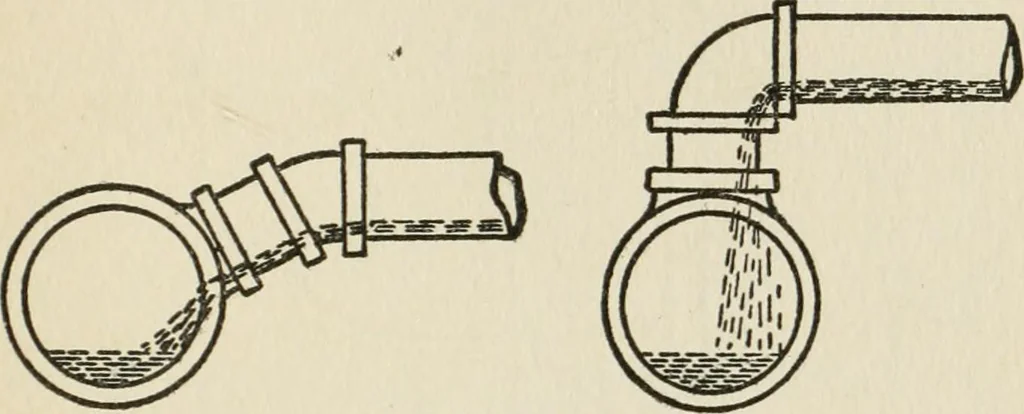

p, the condensationalong the ])ottom. With the 45-degree connec-tion, the condensation from each branch enters HEATING AND VENTILATION 39 the main without saturating the steam, whilewith the use of the 90-degree connection thiswater of condensation flows into the main ontop of the steam supply,… … Fig. 19. Illustrating How Steam Is Saturated by 90-Degree Con-nection to Main. ators; and C the point at which the automaticair-valve should be placed. The arrows indicatethe downward pitch of the main and the upwardpitch of the branches. On all low-pressure steam work, the velocitj^of the steam…
