Mechanical drawing for plumbers; a concise, comprehensive and practical treatise on the subject of mechanical drawing (1910)
Starbuck, R. M. (Robert Macy), 1844-1927 · New York, The Norman W. Henley publishing co. · leaf 94

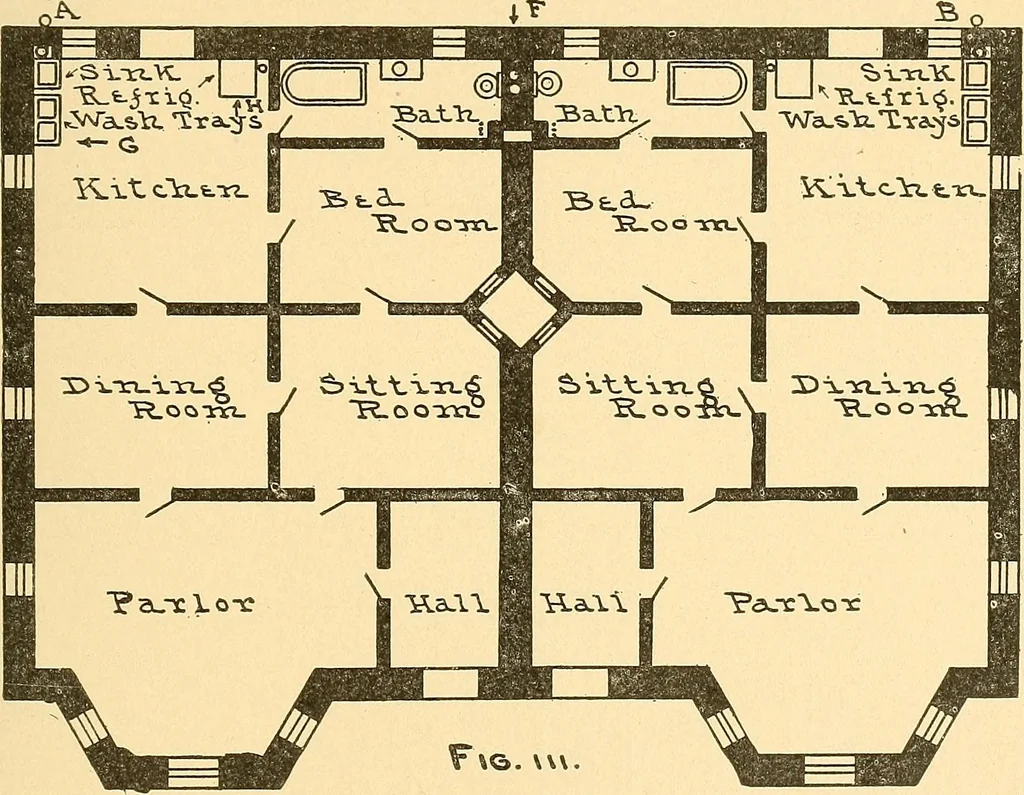

ork. Probably most of our readerswill agree that in figuring such a job asthis one, it would be the easiest thing inthe world to forget to figure in the Ybranch and bend making up this offset.With a drawing, even if it is not elabor-ately drawn, this and a score of other lit-tle points are brought… … S\*. FLKT NPf\RTMENT HOUSE sub-soil drain may be run out into thecenter of the cellar if desired. In Fig. 112 is shown an elevation ofthe plumbing work of the kitchens. Aswill be seen from the floor plan, thekitchens belonging to the two apartmentson each floor are at opposite ends of thebuilding,…
