Leeds, Charles Carley, 1870- · New York, D. Van Nostrand company · leaf 56

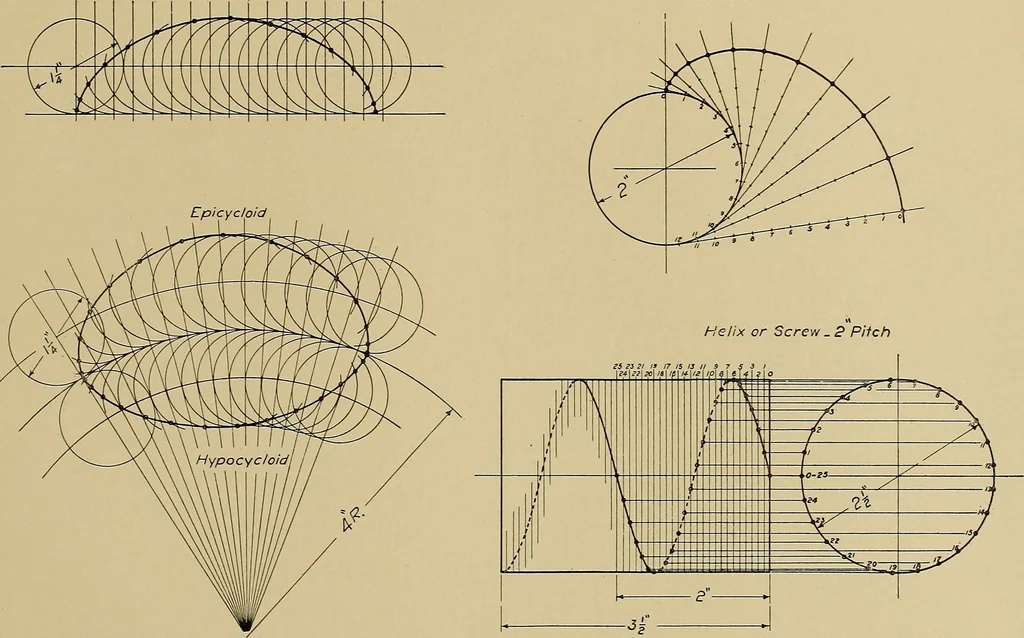

ide the pitchdistance on the cylinder into the same number of equal spaces (25) lywhich the circumference of the cylinder was divided. Now locate points on the side view of the cylinder at the intersec-tion of the vertical division lines with the horizontal projection lines(these lines being… … CLASS Industrial tkadc MachinistNAME John W.Roberts datc reb. 6,07. THE CARNEGIE TECHNICAL SCHOOLS PITTSBURaH, PA. School or apphentices and Journevmen MECHANICAL DRAWING Engineering CurvesThe Path oe a Moving Point SCALE Full Size DW6.NO. C.I0I7 LESSON No. 23. SPUR GEAR.—From Drawing C-1018 make a…
Mechanical drawing
