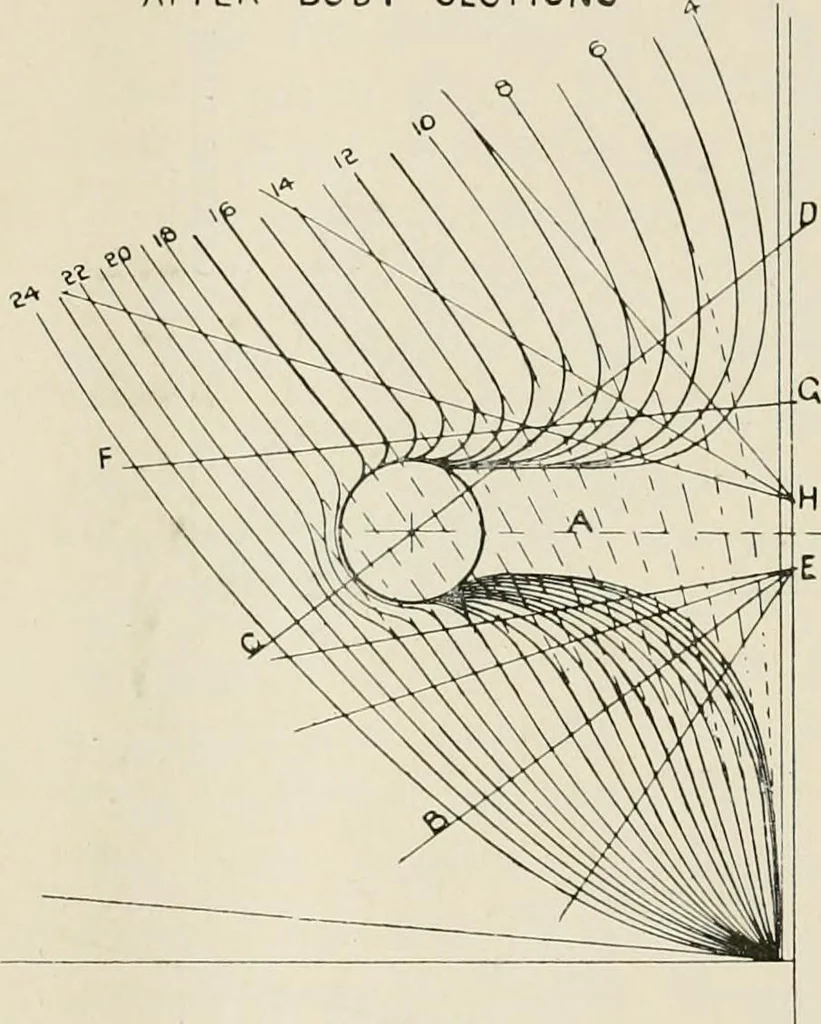

Body, and sectionsdrawn. The whole may now be faired by closely spaced radiatingdiagonal lines from the points H and E, and perhaps a few buttocks.The diagonals should be so placed that they take in the ordinarymoulded form with the curves for bossing, to secure a continuous fairsurface. These… … LAYING-OFF THE SHEER DRAUC.HT. 15 manner:—After the frames are serieved in to the unbossed form, set-off on the centre line of the Body in Fig. 8 the position of the shaftcentre a, and from a descrihe semicircle a c showing the extreme radius
