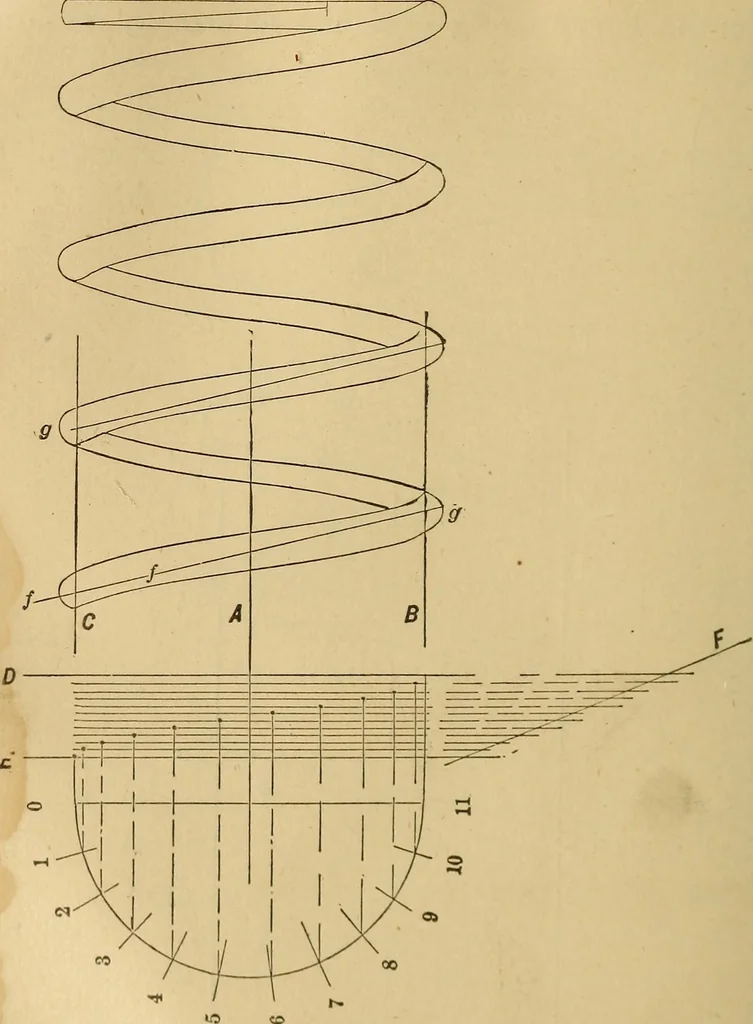

Fig. 215. for threads. It may be pointed out, however, that toobtain as accurate a division as possible of the linesthat divide the pitch, the pitch may be divided upon mm 168 MECHANICAL DRAWING SELF-TAUGHT. a diagonal line, as F, Figure 216, which will greatlyfacilitate the operation. … Fig. 216. Before going into projections It may be as well togive some examples for practice.
