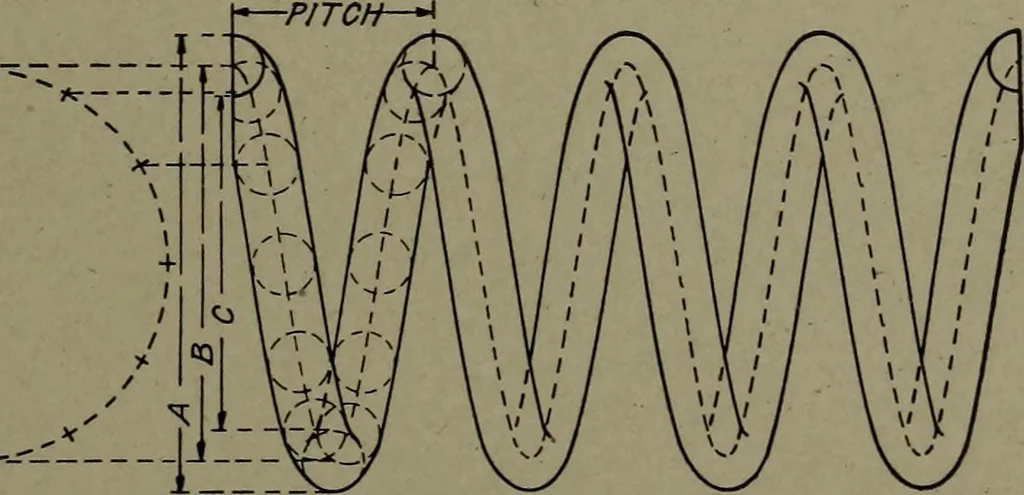

in the center of the wire. Now draw aseries of circles with centers on this helix and of a diameter equalto the diameter of the wire. Smooth curves drawn tangent to thesecircles, as shown in the figure, will give the projection of the spring.Fig. 57 shows a helical spring of square wire. The… … Fig. 56. Accurate Diagram for Helical Spring of Round Wire have the same pitch, equal to AB for, since the square BDP N isthe same as ACML, the distance CD is the same as AB; and sincethe points L, M, N, and P are vertically under A, C, B, and D, 74 MACHINE DRAWING respectively, the distance LN is…
