Mechanical drawing self-taught: comprising instructions in the selection and preparation of drawing instruments, elementary instruction in practical mechanical drawing together with examples in simple geometry and elementary mechanism, including screw threads, gear wheels, mechanical motions, engines and boilers (1883)

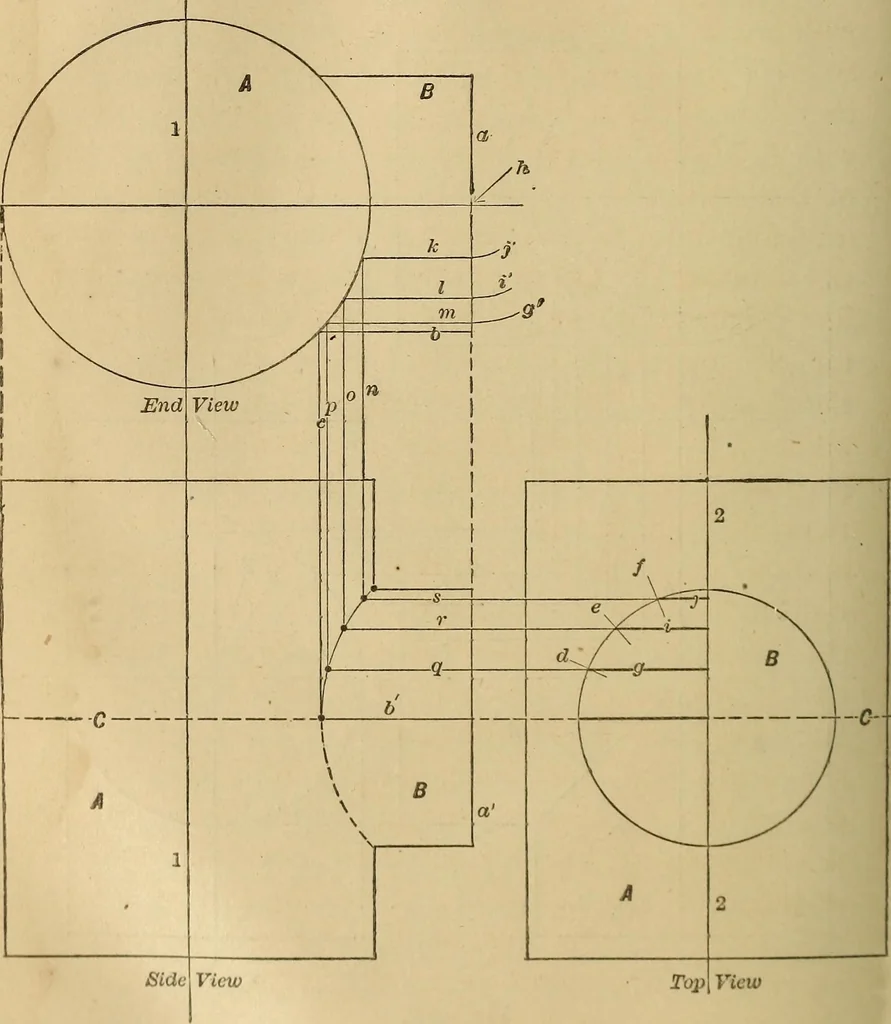

Side View j^^jp View Fig- 226. Figure 227 represents a Tee, in which B is less indiameter than A; hence the two join in a curve, whichis found in a similar manner, as is shown in Figure I82 MECHANICAL DRAWING SELF-TAUGHT. 227. Suppose that the end and top views are drawn,and that the side view is… … Toi) View Fig. 227. Now it is evident diat since the centre line i passesihroun-h the side and end views, that die face a, in the k PROJECTIONS. I S3 end view, will be even with the face <x in the side view,both beine the same face, and as the full lencrth of theside of B in the end view is…
