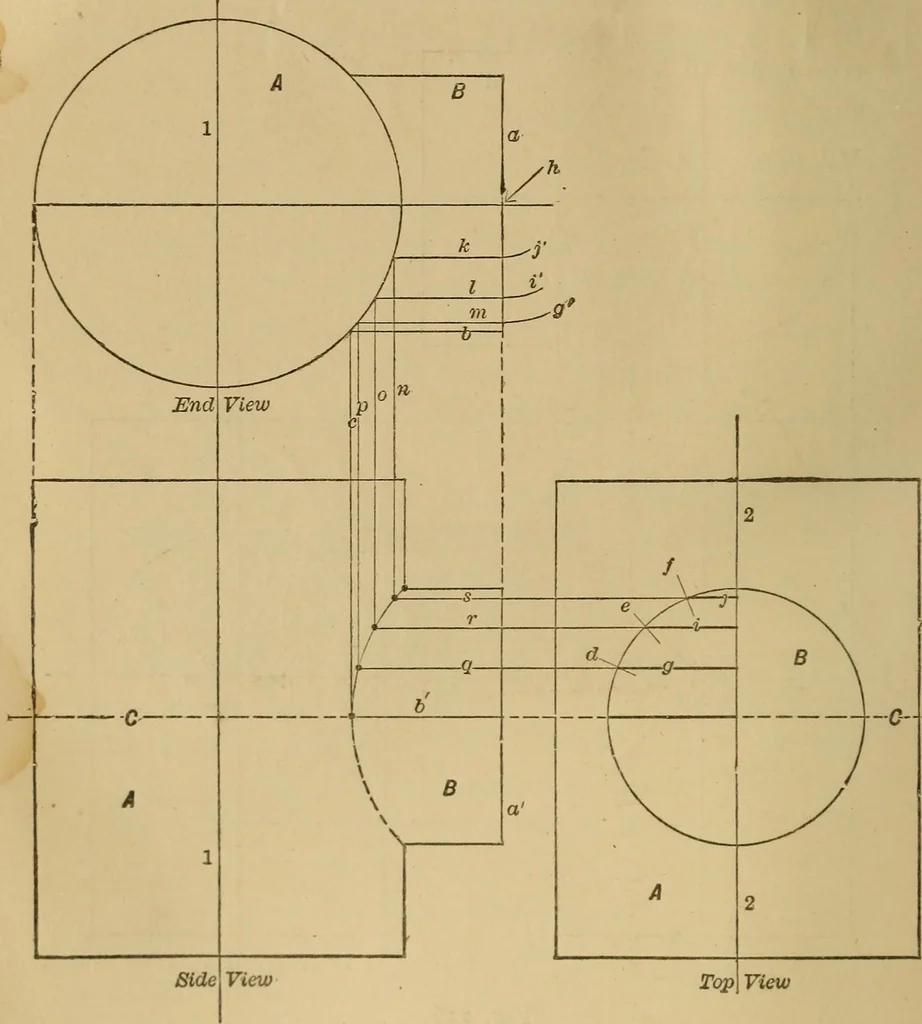

Side View Top View Fig. 226. Figure 227 represents a Tee, in which B is less indiameter than A; hence the two join in a curve, whichis found in a similar manner, as is shown in Figure l82 MECHANICAL DRAWING SELF-TAUGHT. 227. Suppose that the end and top views are drawn,and that the side view is… … Tap View Fig. 227. Now it is evident that since the centre line i passesthrough the side and end views, that the face a, in the PR OJE C TIONS. 13 2 end view, will be even with the face cc in the side view.both being the same face, and as the full length of theside of B in the end view is marked by…
