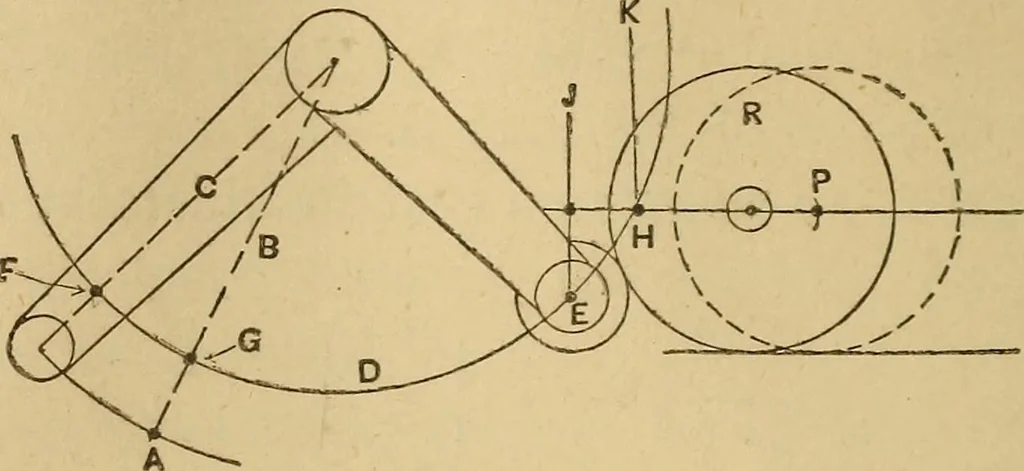

m the face of the shoe. The distance Kbetween these dotted lines Is the amount of motion ofthe shoe. In Figure 260 we have the same conditions as in Fig-ure 259, but the short arm has a roller acting against alarger roller R. The point H Is found as before. Theamount of motion of R is the distance… … Fig. 260. \Vi Figure 261a hnk is introduced in place of the rol-ler, and it is required to find the amount of motion ofrod R. The point^H is found as before, and then thelength from centre to centre of link L is found, andwith this radius and from H as a centre the arc P
