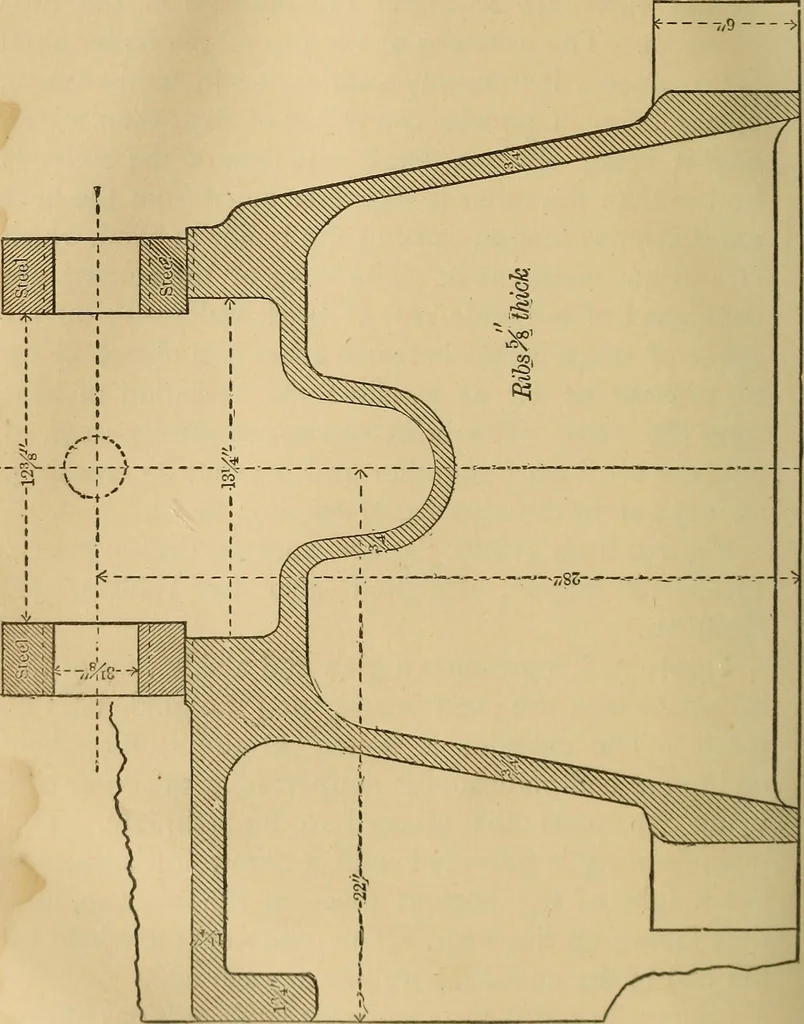

late. Themain bearing is provided with a screw for adjustingthe height of the bottom piece of the bearing, andthus taking up the wear. The guide bars are held tothe bed in the middle as well as at each end. Figures 319 and 320 represent cross sections of thebed-plate. Figure 321 represents a side… … t.---//S—^ Fii variations of temperature without acting to bend thebcd-platc, while at the same time the cyHndcr is sup-
