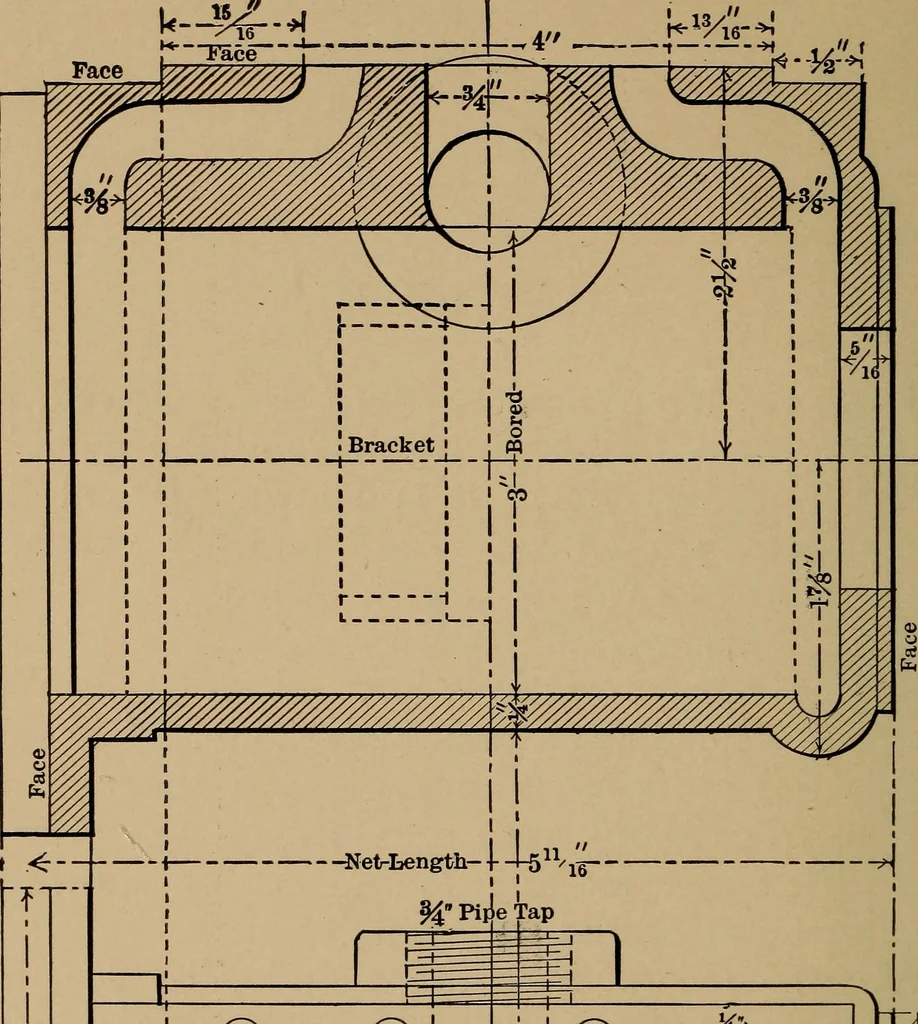

view we need two centre-lines to de-velop it, as shown in A and B. The severaldimensions alluded to in the second chapter arelaid off in their order, and the sizes marked uponthem. The bracket D is for the head of theframe or cylinder support. The cylinder will re-quire two views, as shown in Fig.… … e—o! ijio—& * ■+- i C) C) ^--p^^ --9£1 ? <X* ««* « -13/i6- •>■ -e—a o C) -e—& Fig. 4a. Cylinder-Plan and Section. SMALL ENGINES AND BOILERS. *3 vertical engine which is much simpler and easierto make is shown in the illustration, Fig. 6This engine is wholly brass, except the…
