Mechanical drawing for industrial and high schools (1915)
Leeds, Charles Carley, 1870- · New York, D. Van Nostrand company · leaf 34

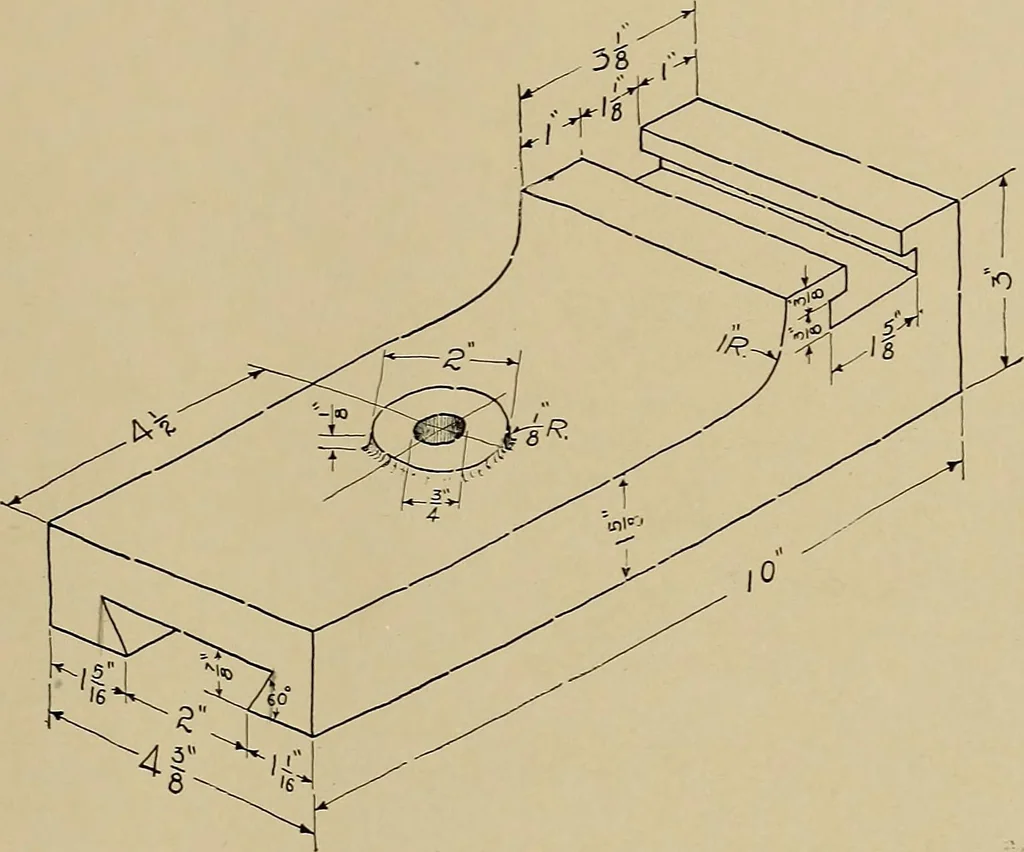

e end.There is little choice as to which view to make first; either viewwill do, though the top view cannot be finished until the dovetailis drawn in on the end view and then projected to the top view. It should be understood that the dovetail groove in the bottomof the tool rest runs through from… … CLAS3 Industrial tv/iMc John W.Roberts date: F~eb-l8-/5- The Carnegie: Institute or Technology PITTSBURGH, PA. SCALE Tool Rest Z3tVG.No. C-1006 LESSON No. 14. UNFINISHED VIEWS.—In this lesson we continue our studyof the subject of projection. We test the students knowledge ofthe subject by a method…
