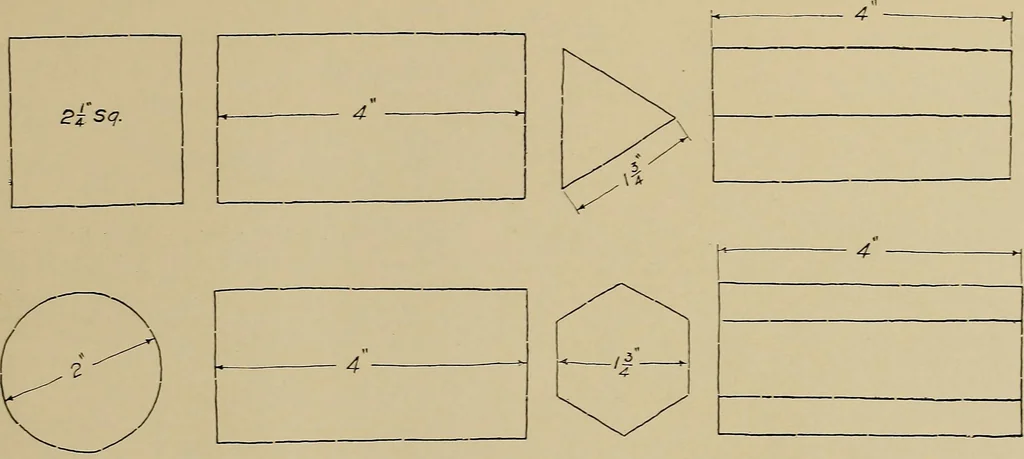

d so that, without the aid of a rule, he may be able to draw a sketchapproximately to a given size. The student will be helped to develop this faculty if, in sketching,he practises drawing to a certain scale or to given dimensions. LESSON.—Make a neat free-hand full-size drawing of the figuresshown… … -*—/ ~l—I £ i *-, <Vl i T . 3_^ \^£ < ^h* <\l S* class Indusirial name John W.Roberts date Mar. BO.06. The Carnegie: Institute of Technology PITTSBURGH, PA. Sketching ~Aj.c Full Size DWG.HO.3-/O0g LESSON No. 17. REFERENCE MATTER.—The information given on DrawingC-ioio is a type of…
