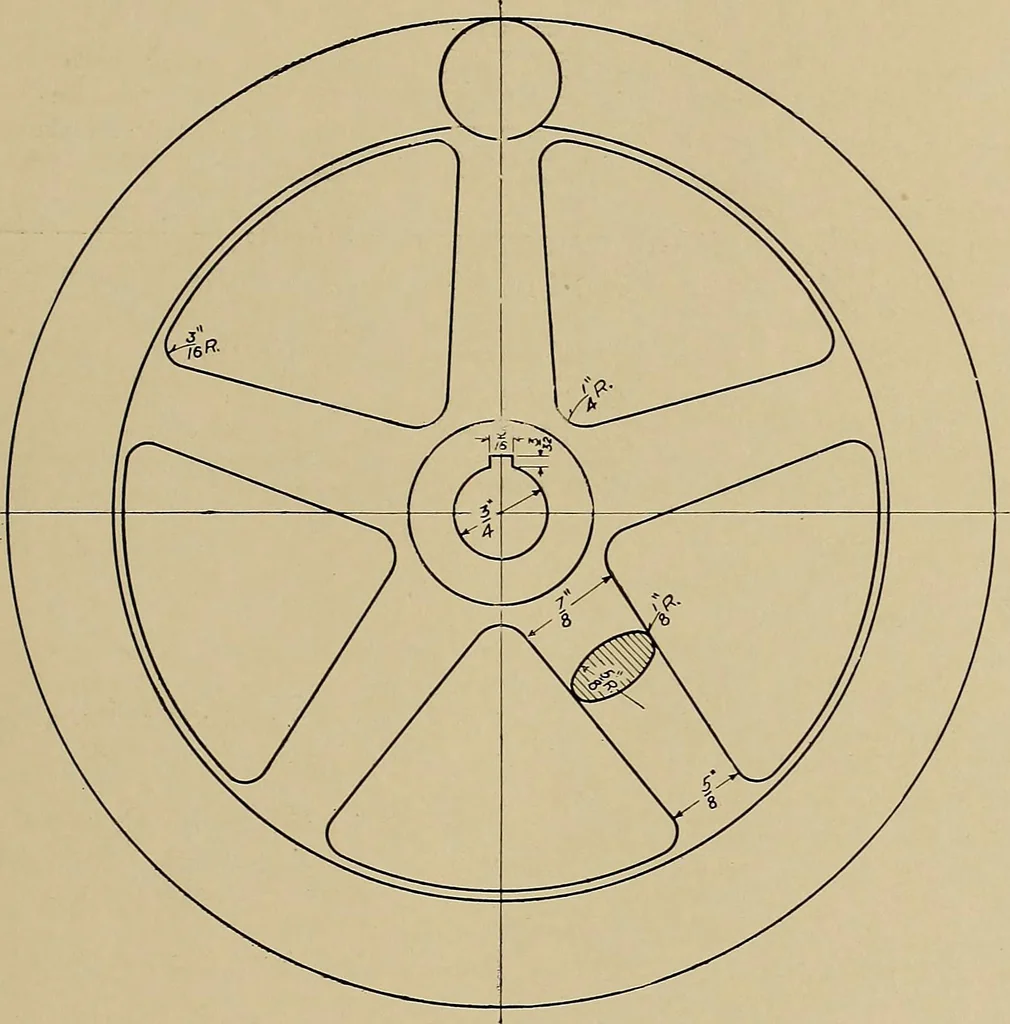

-tinct, keeping in mind the instructions given in Lesson No. 22. When drawing the ball of the handle, do not try to make thetwo radii (i\ and 1 inch) touch, as they should be joined with atangent straight line. The student should bear in mind that whereradii swinging in opposite directions are to…
