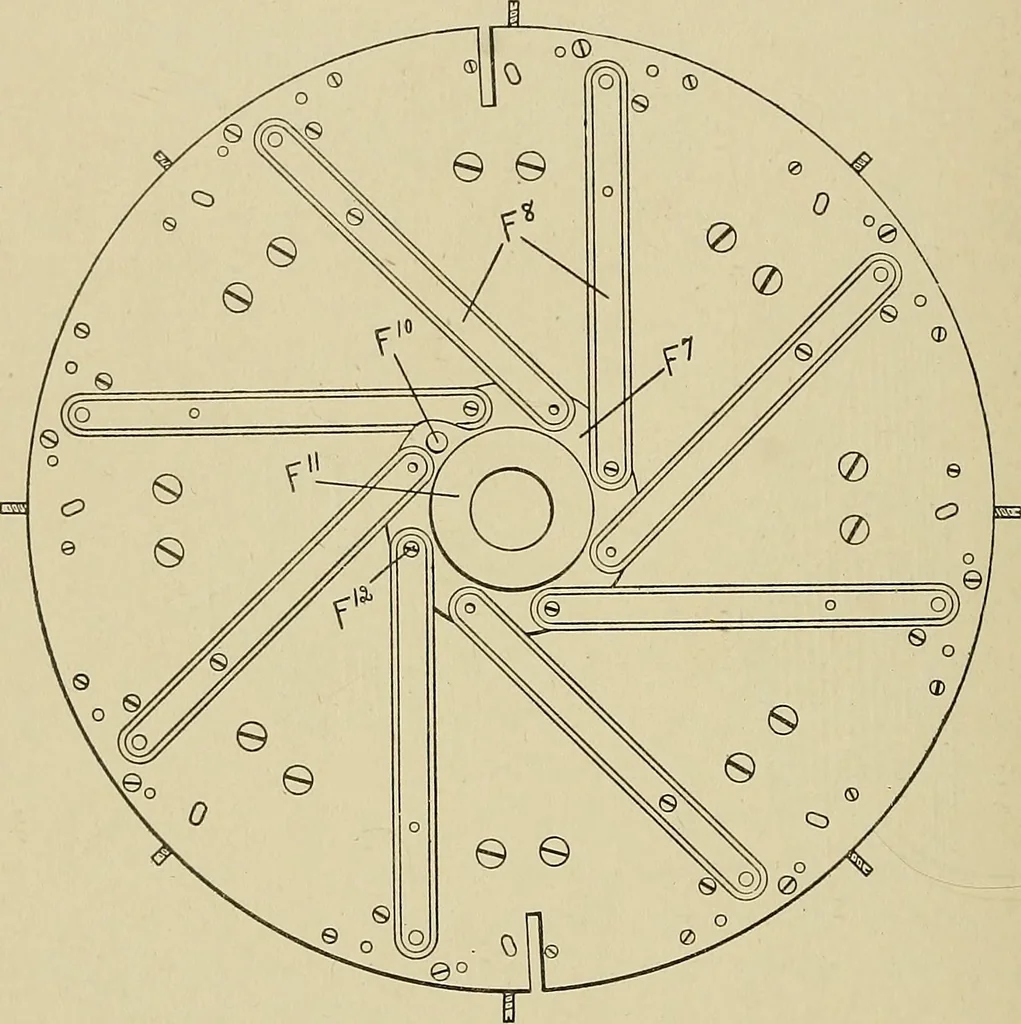

chanism as follows: (SeeFig. 39.) On the left housing plate Z is fixed the bracket M, 117 104 KNITTING in which is journaled the shaft. On the inner end of the shaft is thechain drive lever M, with a stud roller M^ and on the outer end ofthe shaft is the pawl lever M^, carrying pawls M^ and M.… … Fig. 47. Top Side of Cap Plate. to which is fixed the sprocket wheel M that carries the pattern chainM. Next to the chain ratchet is the cam wheel M, on the periph-ery of which rests the chain lever M^^, which is pivoted in the topof the chain bracket M. To the upper end of this bracket is…
