Mechanical drawing for industrial and high schools (1915)
Leeds, Charles Carley, 1870- · New York, D. Van Nostrand company · leaf 66

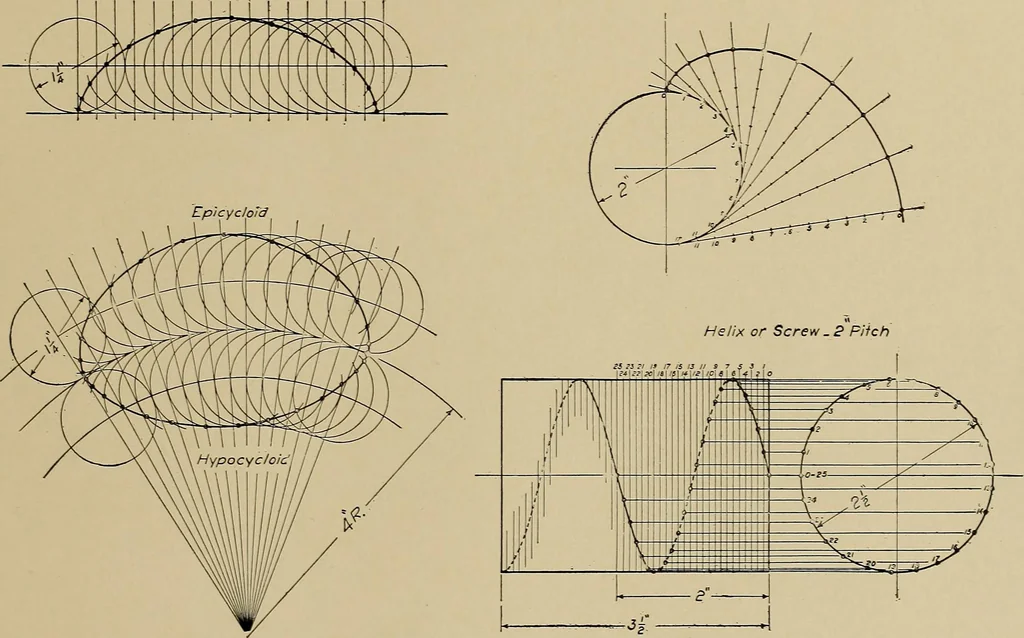

ide the pitchdistance on the cylinder into the same number of equal spaces (25) bywhich the circumference of the cylinder was divided. Now locate points on the side view of the cylinder at the intersec-tion of the vertical division lines with the horizontal projection lines(these lines being… … ciAss Industrial name John W. Roberts catc Feb. 6.07. The Carnegie Institute or Technology PITTSBURGH, PA. Engineering CurvesThe Path or a Mo v:ng Point scale Full Size >£>W6.HO. CJ02I LESSON No. 30. CONIC SECTIONS.—The fundamental principle involved inthis lesson is the projection of a…
