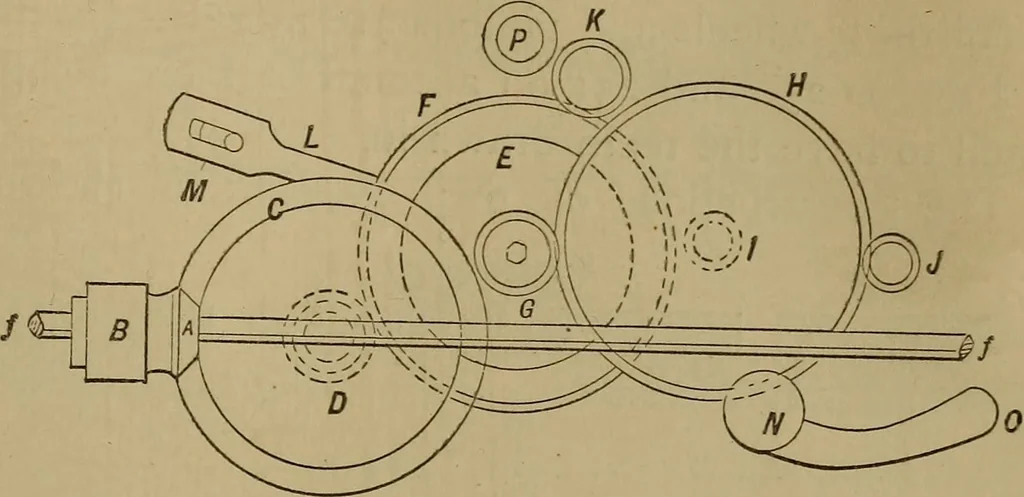

249- Page 209.) DRAWING GEAR WHEELS. 209 may be represented by simple circles in a side viewand by line shading in an edge view; thus it wouldanswer every practical purpose if such small wheels K … Fig. 246. as in Figures 246 and 247 at D, F, G, K, P, H, I andJ, were drawn as shown. The pitch circles, how-ever, are usually drawn in red ink to distinguishthem. cdb 1 /a= In Figure 248 is an example in which part of thegear is shown with teeth in, and the remainder is illus-trated by circles. In…
