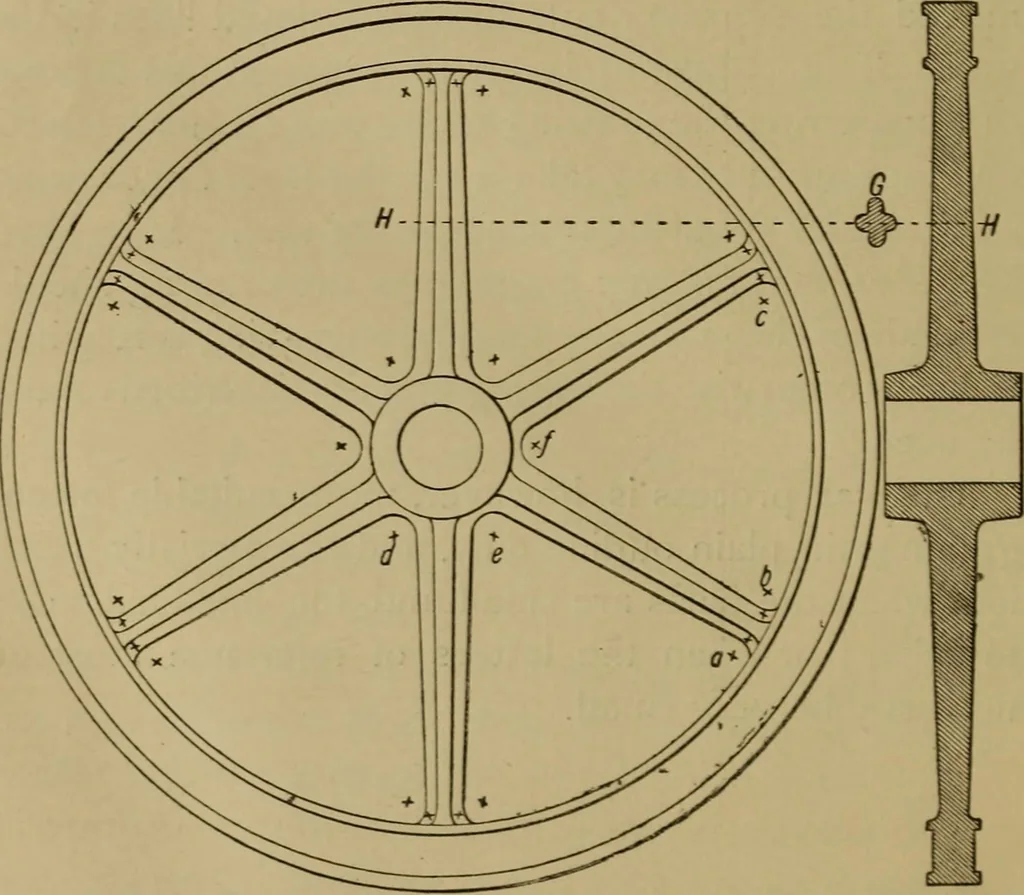

made of the same size that the engraving is requiredto be, or otherwise the tracing process described cannotbe used. The wax process is, however, more suitable for en-gravings in plain outline only, and is especially excel-lent when the parts are small and the lines fall closetoo-ether; or when the… … Fig. 295. Fig. 296. It is obvious that all the centres, a, by c, etc., lay onthe line of a circle struck from the centre of the (26S) EXAMPLES FOR PRACTICE. 26g wheel, and the same remark applies to the centres d, e,/, etc. At G is shown a cross-section of one arm of thewheel taken on the line H H.…
