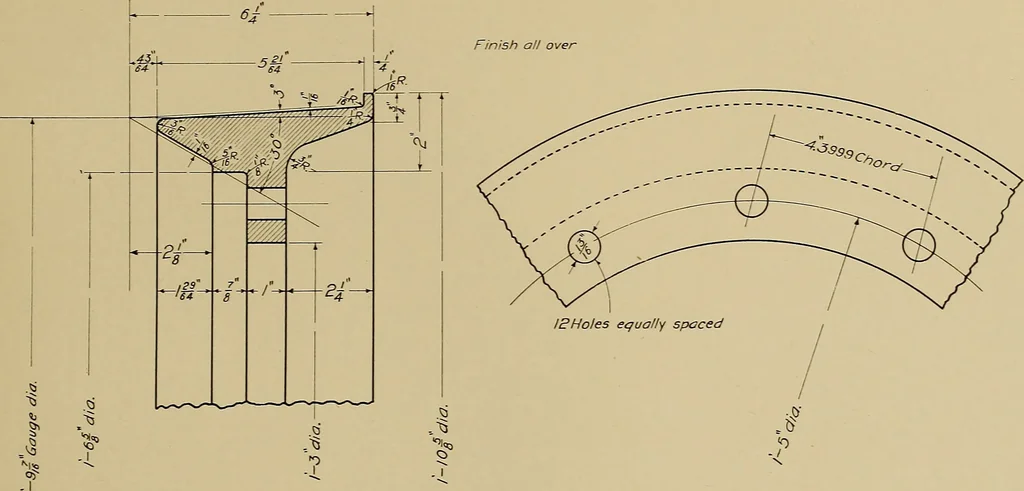

lines (3° and 30°) fix the posi-tion of the ring. The front ring is made of cast steel (c. s.) and should be machinedall over. The narrow lip or flange on the outer edge of the ring is for thepurpose of throwing off any oil that may leak out from the main-shaft bearings. If oil should work over the… … CLASS Industrial trade: Machinistname: Jotin W.Roberts date: Jan. 16-09. THE CARNEGIE TECHNICAL SCHOOLS pittsburgh. pa.School of Appf/lmticcs and Journeymen mechanical drawing Front Commutator Ring SCALE 2 Size owg.no. C-104 2 LESSON No. 48. REAR C0:^OIUTAT0R RING. — On Drawing C-1043 isshown a…
Mechanical drawing
