Effect of Jet-nozzle-expansion Ratio on Drag of Parabolic Afterbodies (1954)
NASA Technical Reports Server (NTRS) · leaf 14

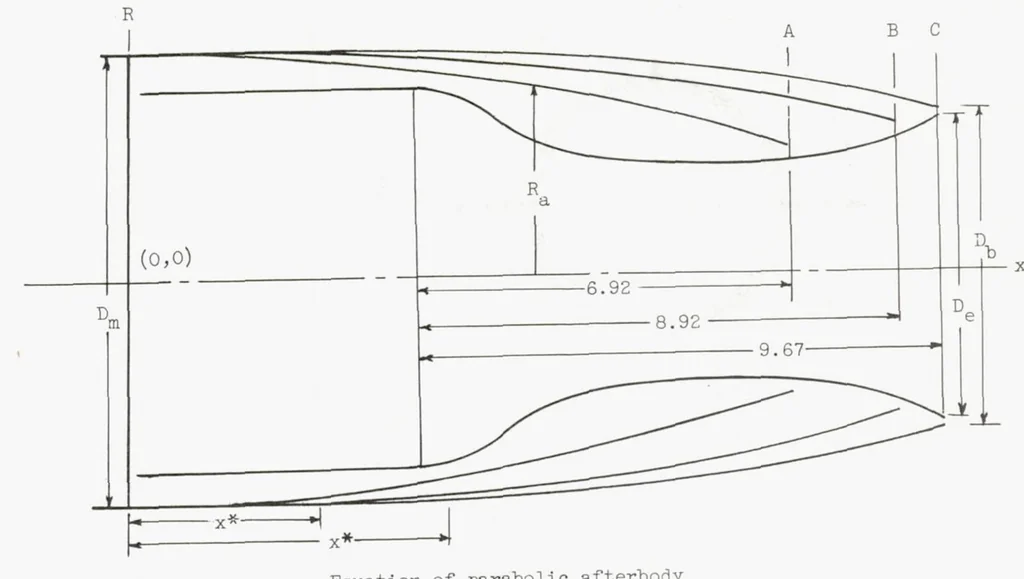

MCA EM E54B12 14 … Equation of parabolic afterbody 4.125 f 2 ^^a= ^-125 - (x - x^) ®'Start of nozzle contour. ^4. ... b^* _ length of cylindrical section to start of boattailing from reference axis (x = O) (c) Nozzle and boattail contours (dimensions in inches). Figure 1. - Continued. Experimental apparatus.NASA Technical Reports Server (NTRS)
Internet Archive · NASA Technical Reports · Public domain (US government work). Free to use for anything.
