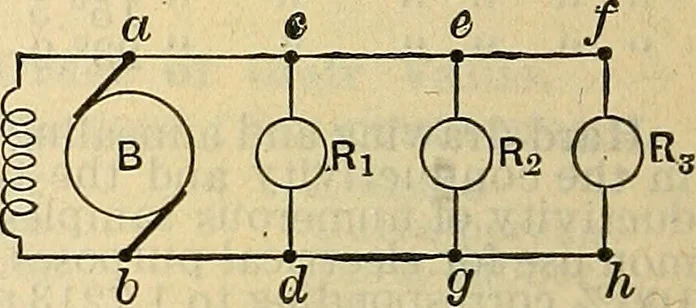

0.1 ohmin each of the six sections of the main wires, ac, bd, etc., in series. Thevoltage across ab being 220 volts, determine the drop in voltage at theseveral points, the total current, and the current through each path.The problem is somewhat complicated. It may be solved as follows:Consider… … DIRECT ELECTRIC CURRENTS. 1353 paths. Next consider the points cd; here there are two paths — onethrough e and the other through cd. Find the total resistance as before.Finally consider the points ab\ here there are two paths — one throughc, the other through s. Find the conductances of each and…
