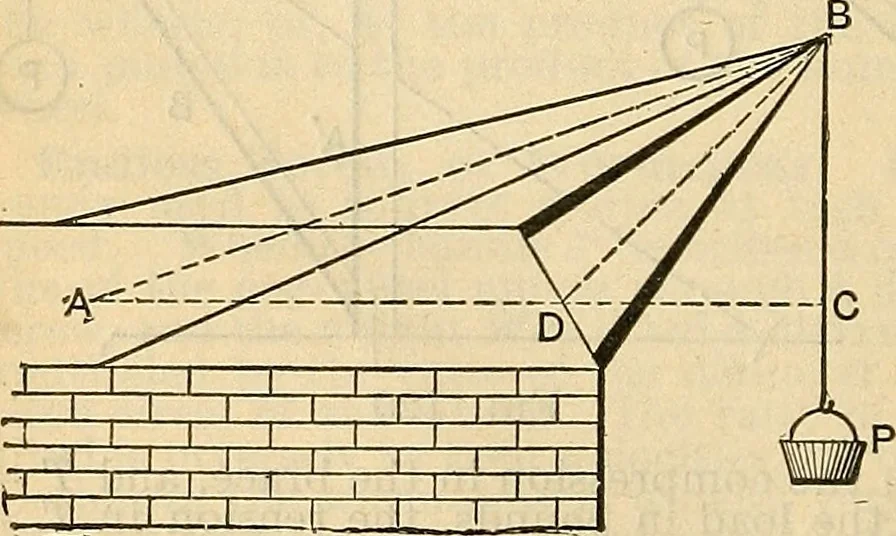

ing infinite when g = 0. 3. Shear-poles with Guys.(Fig. 122.) — First assume thatthe two masts act as one placedat BD, and the two guys asone at AB. Calculate the strainin BD and AB as in Fig. 120.Multiply half the strain in BD(or AB) by the secant of halfthe angle the two masts (orguys) make with… … Fig. 122. sustain a single load P.v i5; on Ci = 1/2 PX CA STRESSES IN FRAMED STRUCTURES. 517 are of equal length, in which case 1/2 of P is supported by each abutmentC and D. If they are unequal in length (Fig. 124), then, by the principleof the lever, find the reactions of the abutments Pi and R2.…
