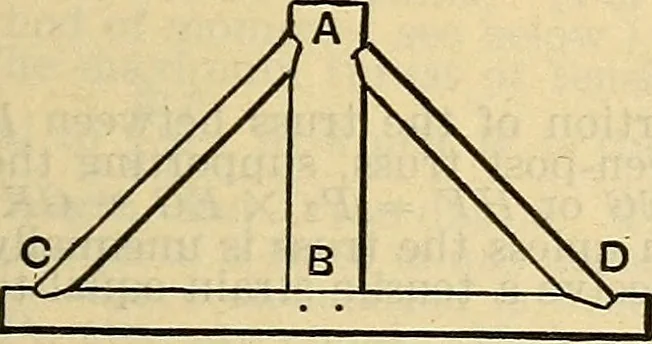

Fig. 125. Fig. 124. If the braces support a uniform load, as a pair of rafters, the strainscaused by such a load are equivalent to that caused by one-half of theload applied at the center. The horizontal thrust of the braces againsteach other at the apex equals the tensile strain in the tie.…
