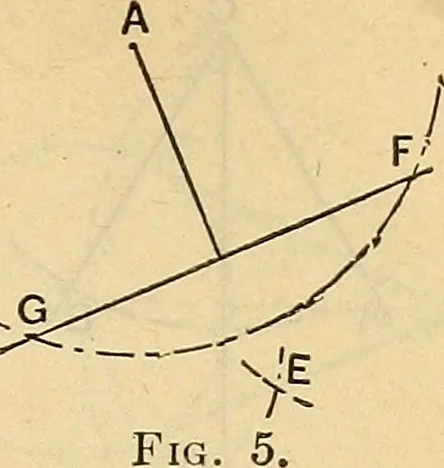

r 9, 12, 15. GEOMETRICAL PROBLEMS. 39 5. To draw a perpendicular toa straight line from any pointwithout it (Fig. 5). — From thepoint A, with a sufficient radius cutthe given line at F and G, and fromthese points describe arcs cutting atE. Draw the perpendicular A E. 6. To draw a straight… … I I _<! A— 7. To divide a straight line intoa number of equal parts (Fig. 7).— To divide the line A B into, say,five parts, draw the line A C at anangle from A; set off five equal parts;draw B5 and draw parallels to itfrom the other points of division inA C. These parallels divide A B…
