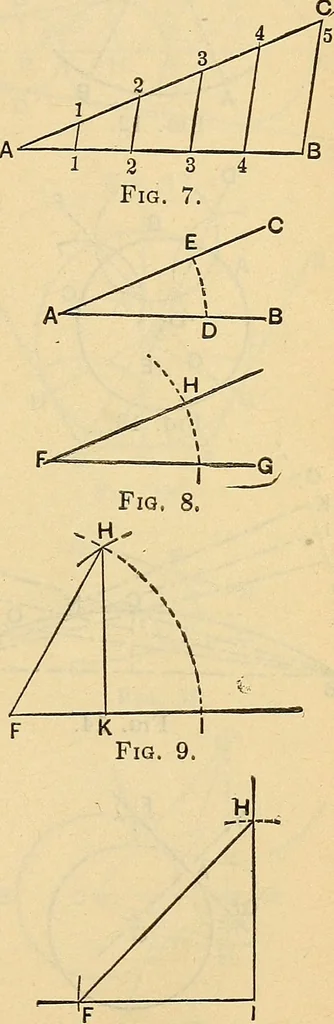

Hequal to D E, and draw F H. Theangle F is equal to A, as required. 9. To draw angles of 60° and 80° (Fig. 9). — From F, with anyradius F I, describe an arc / H; andfrom /, with the same radius, cutthe arc at H and draw F H to formthe required angle I F H. Draw theperpendicular H K to the base line… … 40 GEOMETRICAL PROBLEMS.
