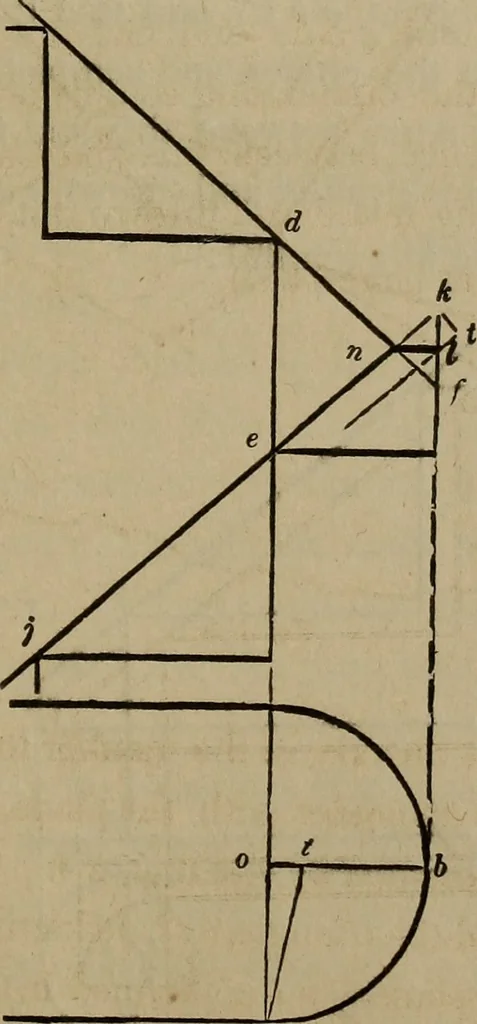

ightangles to e c; this angle, e c tj being increased by adding the an-gle, t cl, corresponding to ^ c Z, Fig. 294, the point, Z, is reached,and the proper position and length of the lines, e c and c I ob-tained. To obtain the face-mould for a rail over a cylindricalwell-hole, the same process is… … Fig 295. 462.—Case 2 -^ When the cylinder is large. Fig. 295 re- uo AMERICAN HOUSE-CARPENTER. presents a plan and a vertical section of a line passing through thecentre of the rail as before. From b, draw b k, parallel to cd; ex-tend the lines, i d and J e, until they meet kbink and/; from n,draw n…
