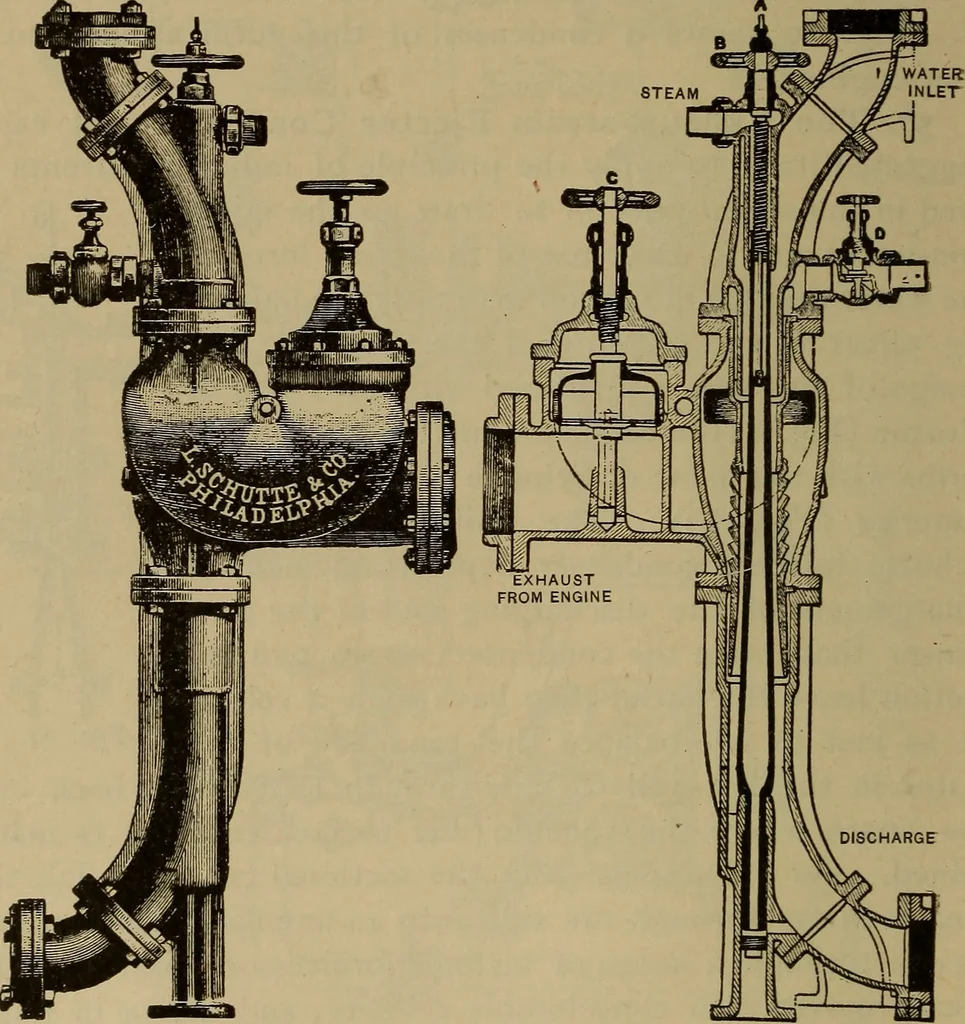

112 MECHANICAL ENGINEERING OF POWER PLANTS. controlled by the valve permits the exhaust to be carried tathe open air when for any reason it is desirable to run theengine non-condensing. It will be observed that this arrangement also, like that ia outsiolC view. 6ECTIONAI. CUTA … Fig. 83. Fig. 82. par. 56, enables the condenser to be operated without the 34.feet of elevation. The series of gravity siphon and ejectorcondensers are all jet or direct-contact condensers. 58. Pump Condensers.—For mining purposes and iacases where the disposing of exhaust-steam is a feature of…
