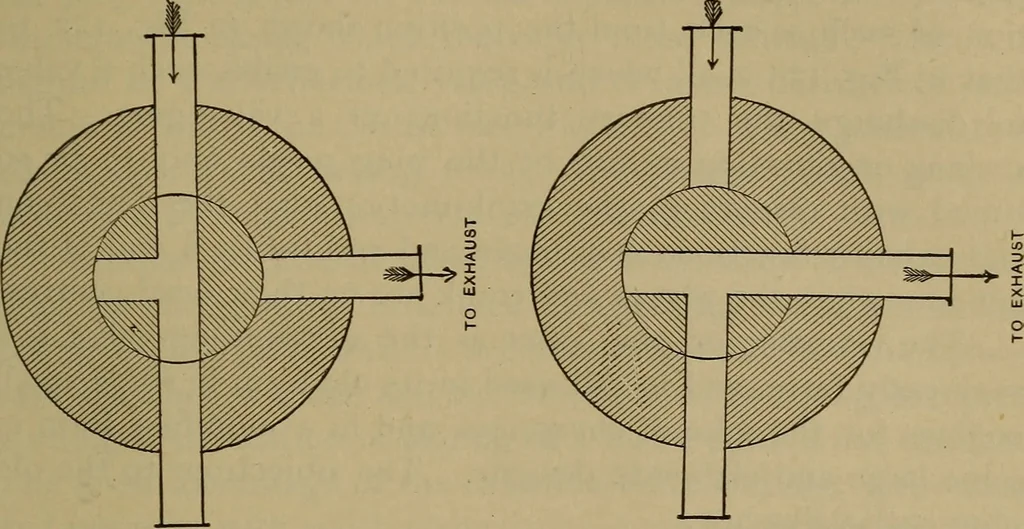

onsidering it in advance of other form.s. 80. Three-way and Four-way Valves.—It will be appar-ent when one end of a cylinder is to be put into alternatecommunication with boiler and exhaust-pipe that the ordinarythree-way valve can be made to fill these requirements bycausing it to vibrate through… … TO CYLINDER Fig. 120. FROM CYLINDER Fig. 121. Fig. 12 1 shows the position 90° distant when the cylinder hasbeen connected to the exhaust-pipe. It will be seen that the FROM BOILER FROM BOILER
