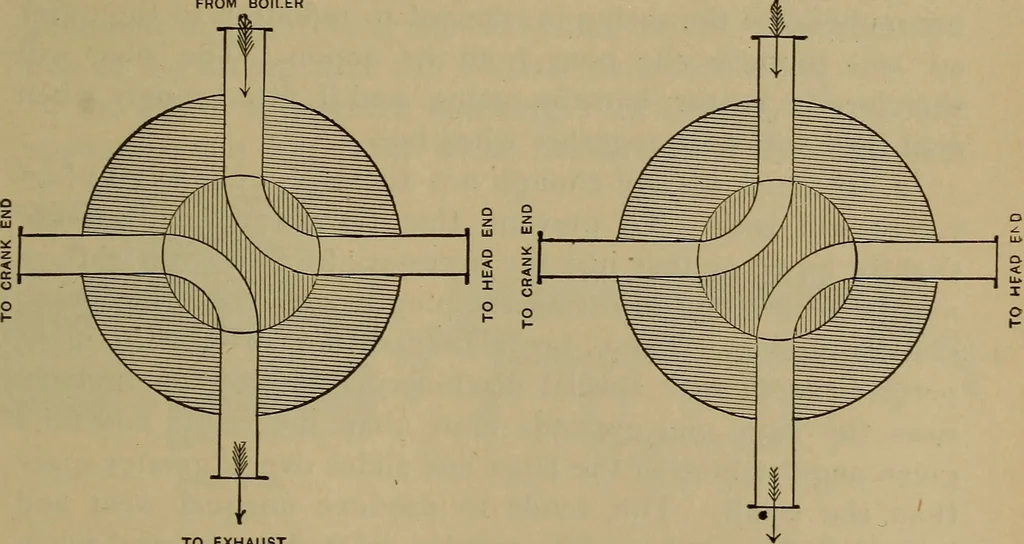

TO CYLINDER Fig. 120. FROM CYLINDER Fig. 121. Fig. 12 1 shows the position 90° distant when the cylinder hasbeen connected to the exhaust-pipe. It will be seen that the FROM BOILER FROM BOILER … TO EXHAUST Fig. 122. Fig. 123. motion which connects the cylinder with one opening closesits connection with another. It is not difficult to modify the three-way cock that it may 156 MECHANICAL ENGINEERING OF POWER PLANTS. serve to distribute steam in and out of both ends of a double-acting engine.…
