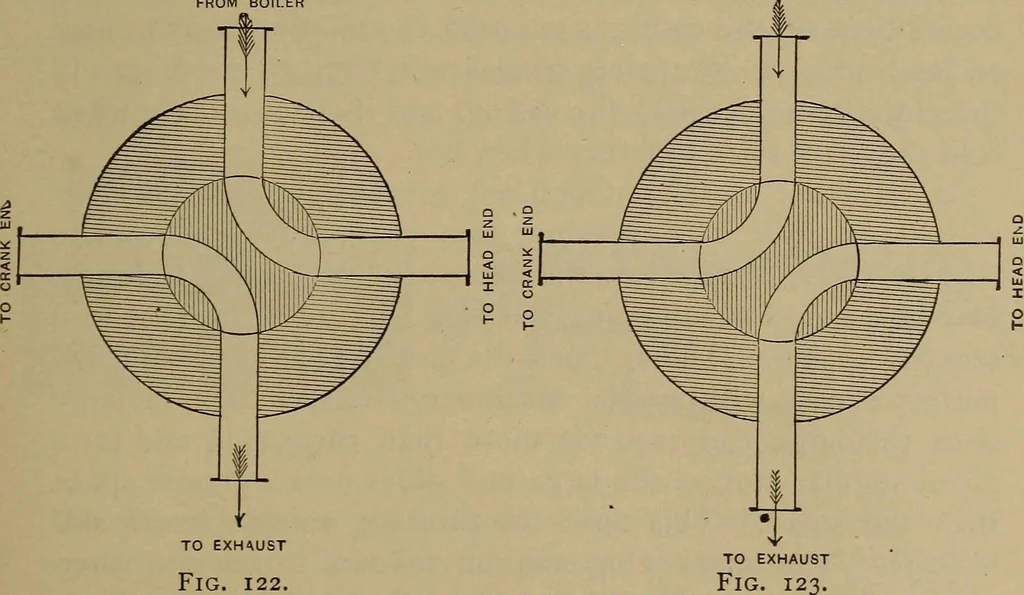

FROM CYLINDER Fig. 121. Fig. 121 shows the position 900 distant when the cylinder hasbeen connected to the exhaust-pipe. It will be seen that the FROM BOILER FROM BOILER … TO EXHAUST Fig. 122. motion which connects the cylinder with one opening closesits connection with another. It is not difficult to modify the three-way cock that it may 156 MECHANICAL ENGINEERING OF POWER PLANTS. serve to distribute steam in and out of both ends of a double-acting engine. It is…
