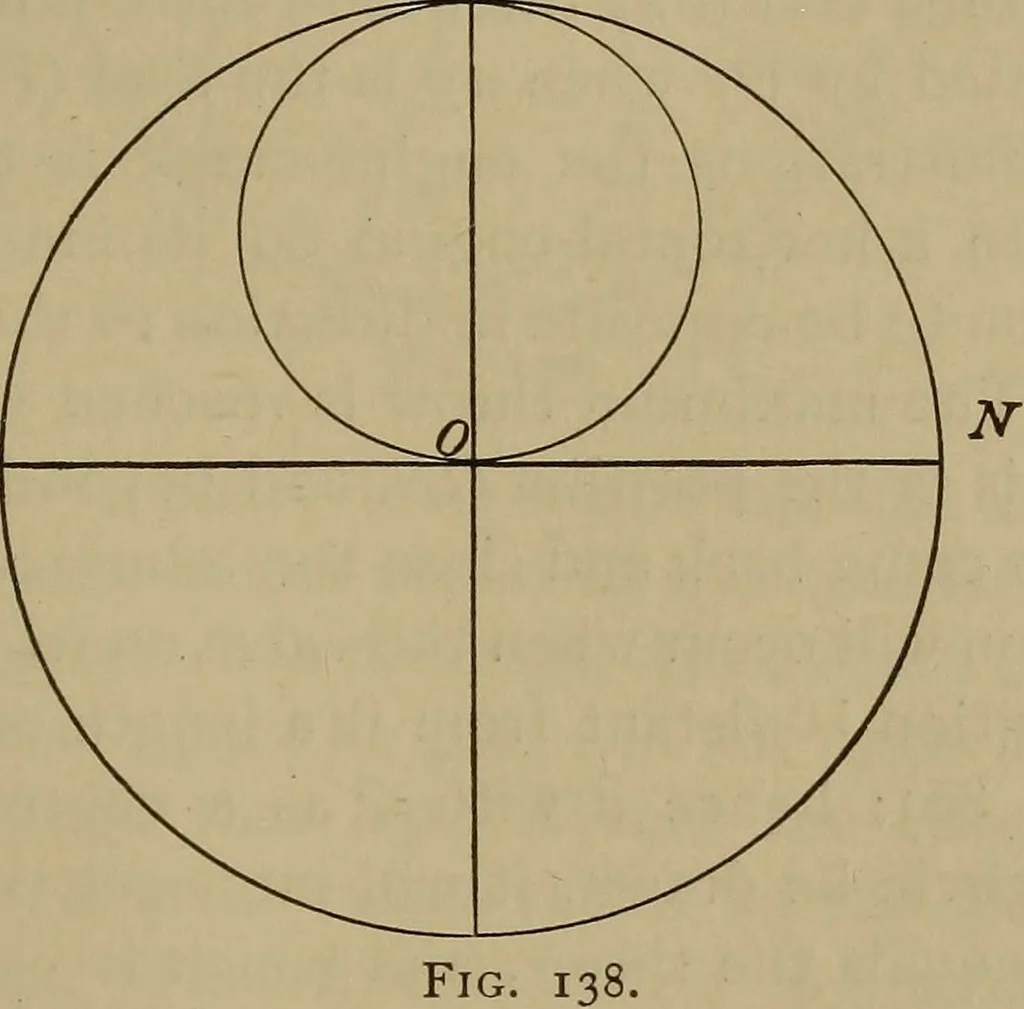

ar circle makes withthe line parallel with the valve-seat will be determined by theangle which the valve-crank makes with the line through thedead-centre when the valve is at its extreme point of throw;in which case the radius-vector becomes equal to the diameter.If there is neither lap nor lead… … a lap, then, at the dead-centre of the piston, the valve shouldbe distant from its central position a distance equal to suchlap, and the radius vector for a horizontal engine, which has 1/8 MECHANICAL ENGINEERING OF POWER PLANTS. been assumed in all this discussion, should have a value equalto this…
