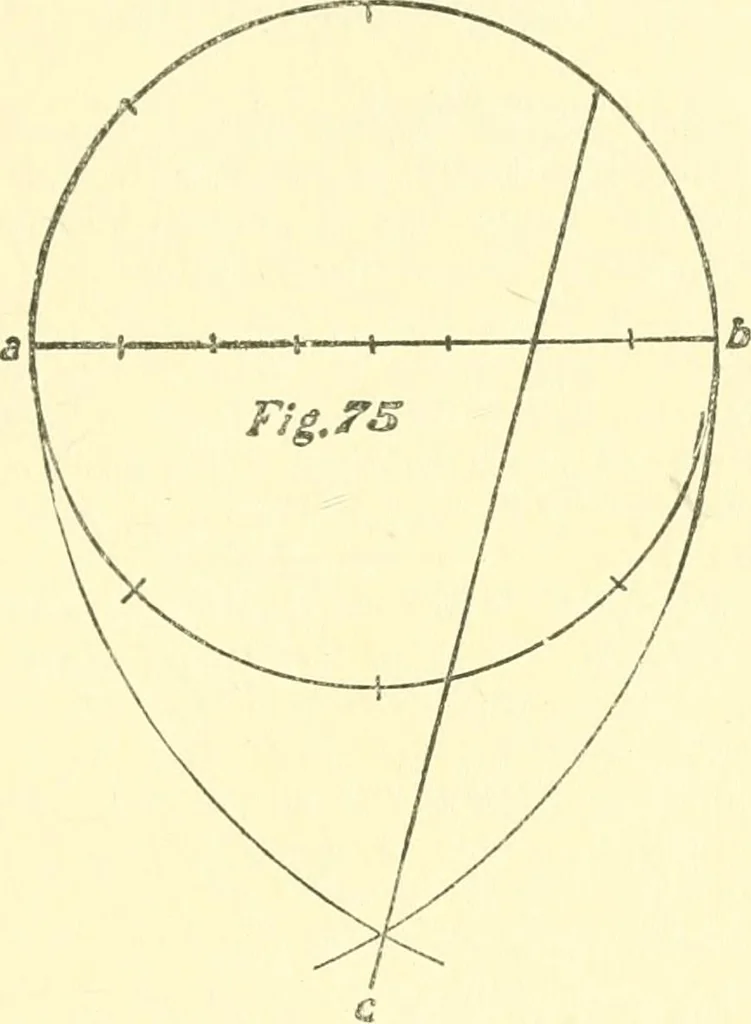

.75, and establish the diameter a b; divide the diameterinto as many equal parts as is desired in the circumference.With a b as centres and <2 <^ as radius draw arcs inter-secting at c; draw a line from c through the second divi-sion on the diameter and i b will be one of the desiredparts on… … the answer by the number of parts in the circumference;this will give the length of one of the parts. CHAPTER VIII. At Point c on the Line a h to Draw Two Arcs of Circles Tangent to a b and the Two Par-allels a h andb e Forming an Arch—To Draw an Ellipse—To Draw an Ellipse witha String—To Draw an…
