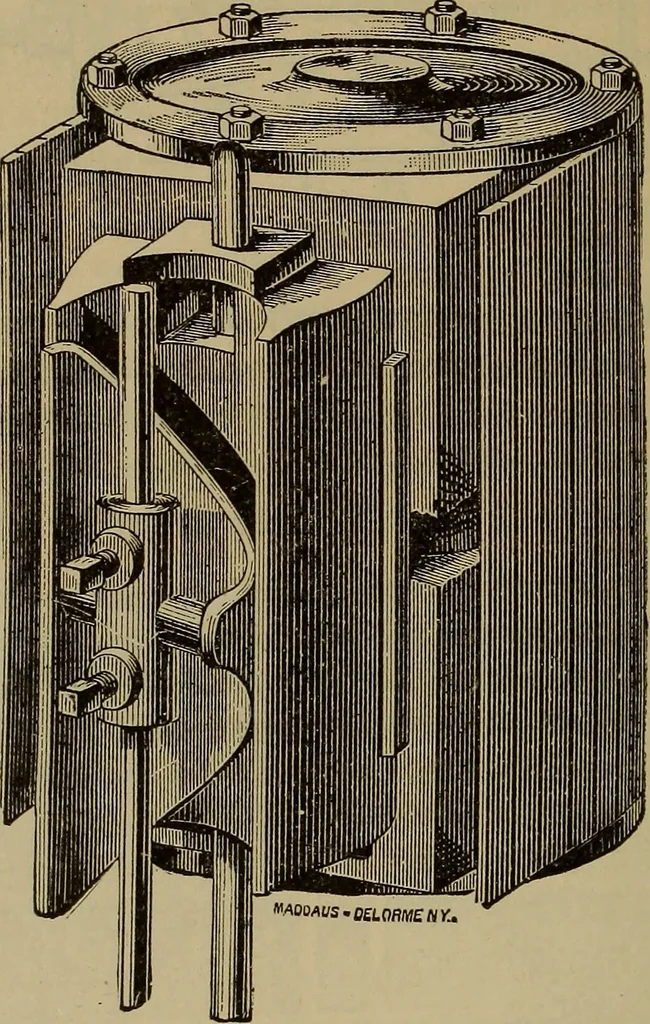

OF POWER PLANTS, ing the valve-stem, the pinion which it carries will cause thevalve to slide in a plane farther up in the chest, so that the lapat each horizontal line has become longer than it was in theposition shown. This rotating of the stem and adjustment ofthe plane of the cut-off valve can… … Fig. 199. feature of the Rider cut-off valve-gear The flat pl-ane ofFig. 198 has become the surface of a cylinder, and the cut-off valve is a part of another cylinder. As the spindle of thecut-off valve is turned through an angle as it slides up anddown as usual, the surface of contact with the…
