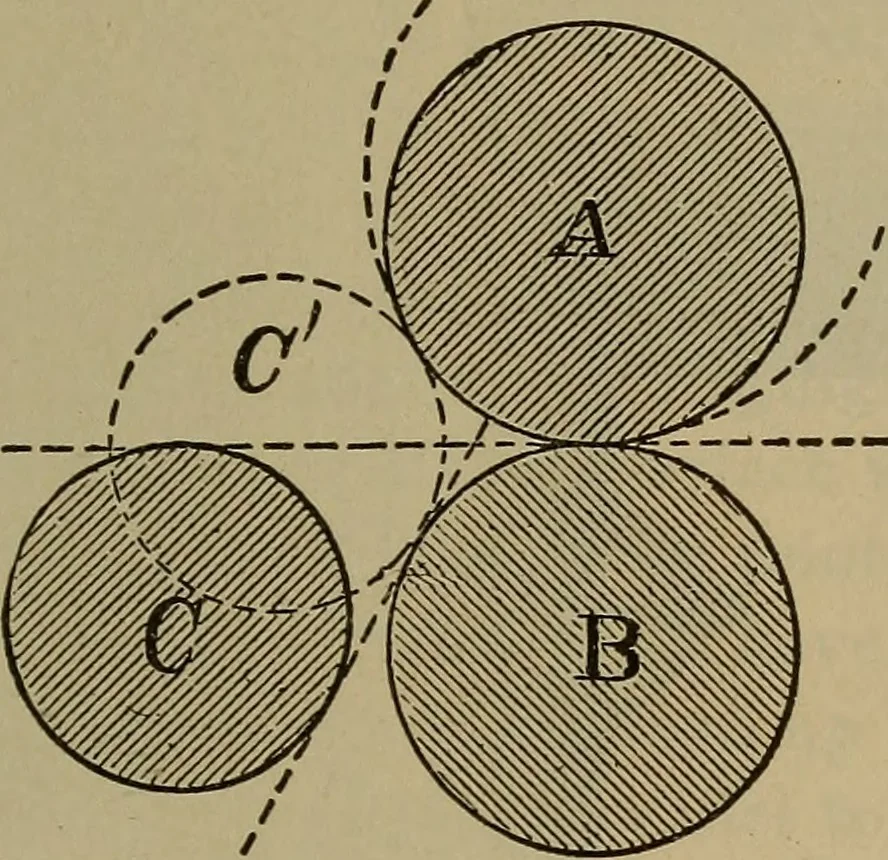

Fig. 319. of diameter sufficient to withstand the tendency to flex, andof length sufficient to handle the longest or widest plate used.The rolls limit also the thickness of plate convenient forshells. Their convenient diameter imposes a lower limit for -B—- … IE- Fig. 320. the diameter of flues to be made by their use. Their lengthimposes a limit upon the length of boiler-shell to be made inone piece, or in two pieces if the joint is to be longitudinal. 209. Arrangement of Rings of Plate in Shells.—It isdesired to have as few joints in the shell as…
