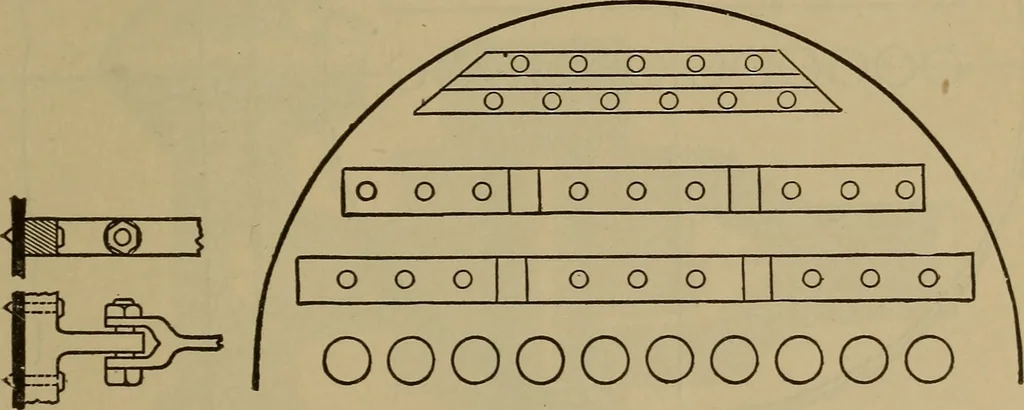

^^^5^^ usual to stiffen the head by means of angle- or channel-irons orsimilar structural shapes, whereby the holding power of thestays shall be distributed over the more flexible head. This … Fig. 342. can also be done by large washers on the outside of the head.Fig. 341 will show the detail of such through-stays. To avoid the threaded hole in the heads and the project-ing end of the stay, the stay-rod has been fastened to stay-bars on the heads by a pin-joint. Fig. 342 shows a form of…
