Hutton, Frederick Remsen, 1853- [from old catalog] · New York, J. Wiley & sons; [etc., etc.] · leaf 464

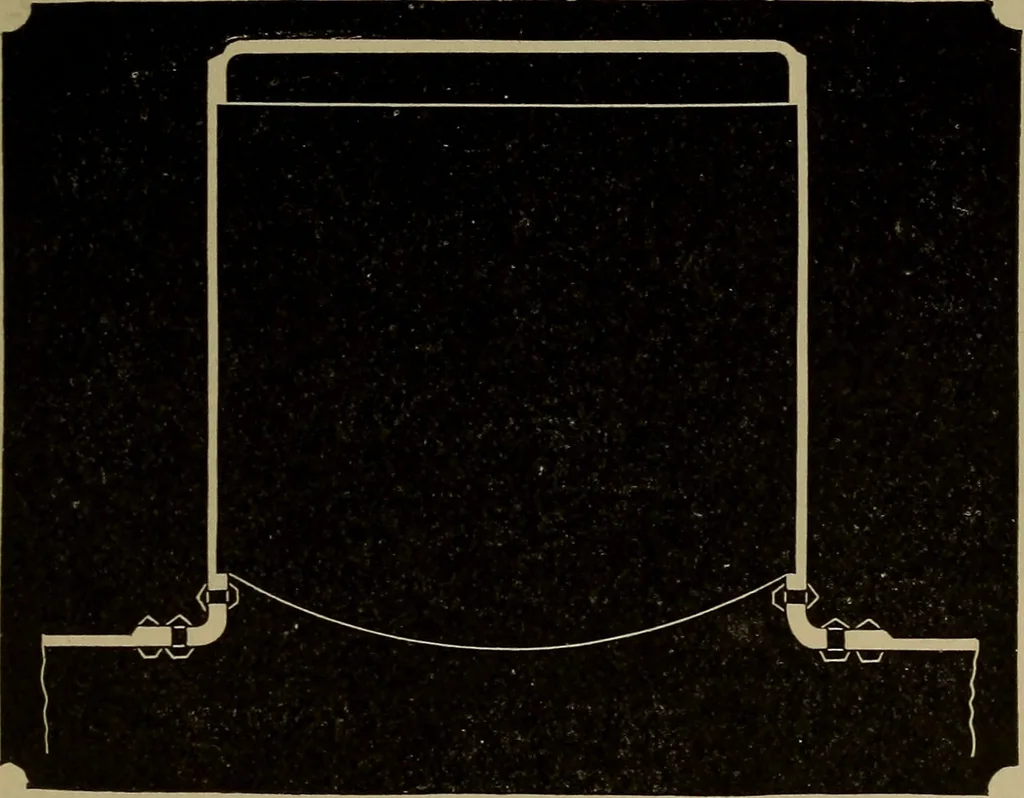

nozzle on the shell. Under a neck or nozzle the water isheaped up (Fig. 373), and the greatest disengagement occursat that point, a condition favorable to priming. The dome isusually put at that point on the length of a boiler at whichexperience shows the disengagement to be most active, soas to… … Fig. 363 not only is the strength affected, but the cylindrical shelltends to flatten under the pressure, and tnis results in leakageat the dome-seam at the top. The shell is an unstiffenedcurved stay v/here the hole is cut, and the double thicknessof the lap of the dome-joint does not replace the…
Mechanical engineering · Steam power plants
