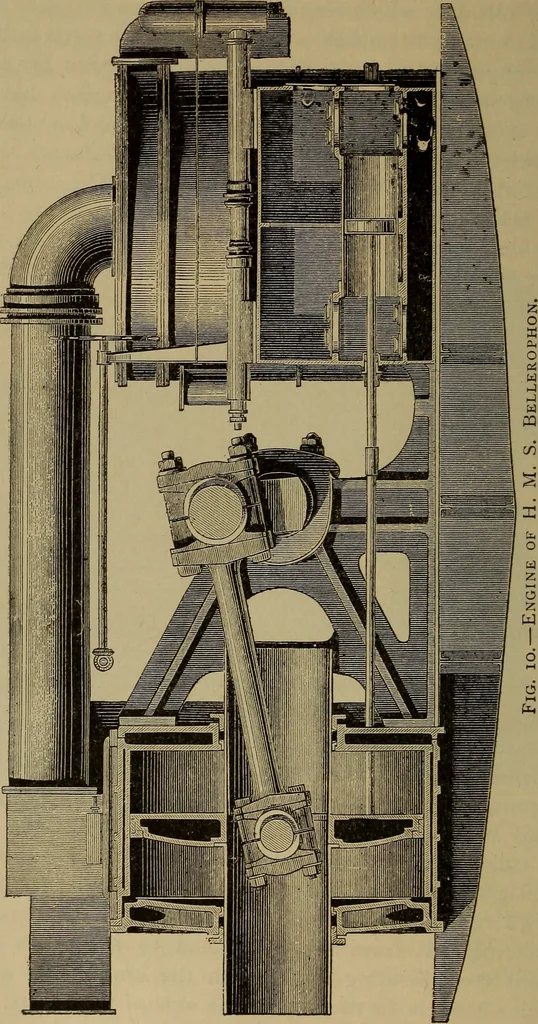

nder as it were. It is usually neces-sary where the shaft is behind the cylinder to make use of twoconnecting-rods from the cross-head to the crank-shaft, toprevent cross-bending strain upon the cross-head, since thecylinder itself is in the line of the axis of the effort. Thesetwo connecting-rods… … I THE MECHANISM OF ENGINES. 25 mit the effort to a single pin. This type of design is by nomeans unusual for pumps, air-compressors, and blowing-
